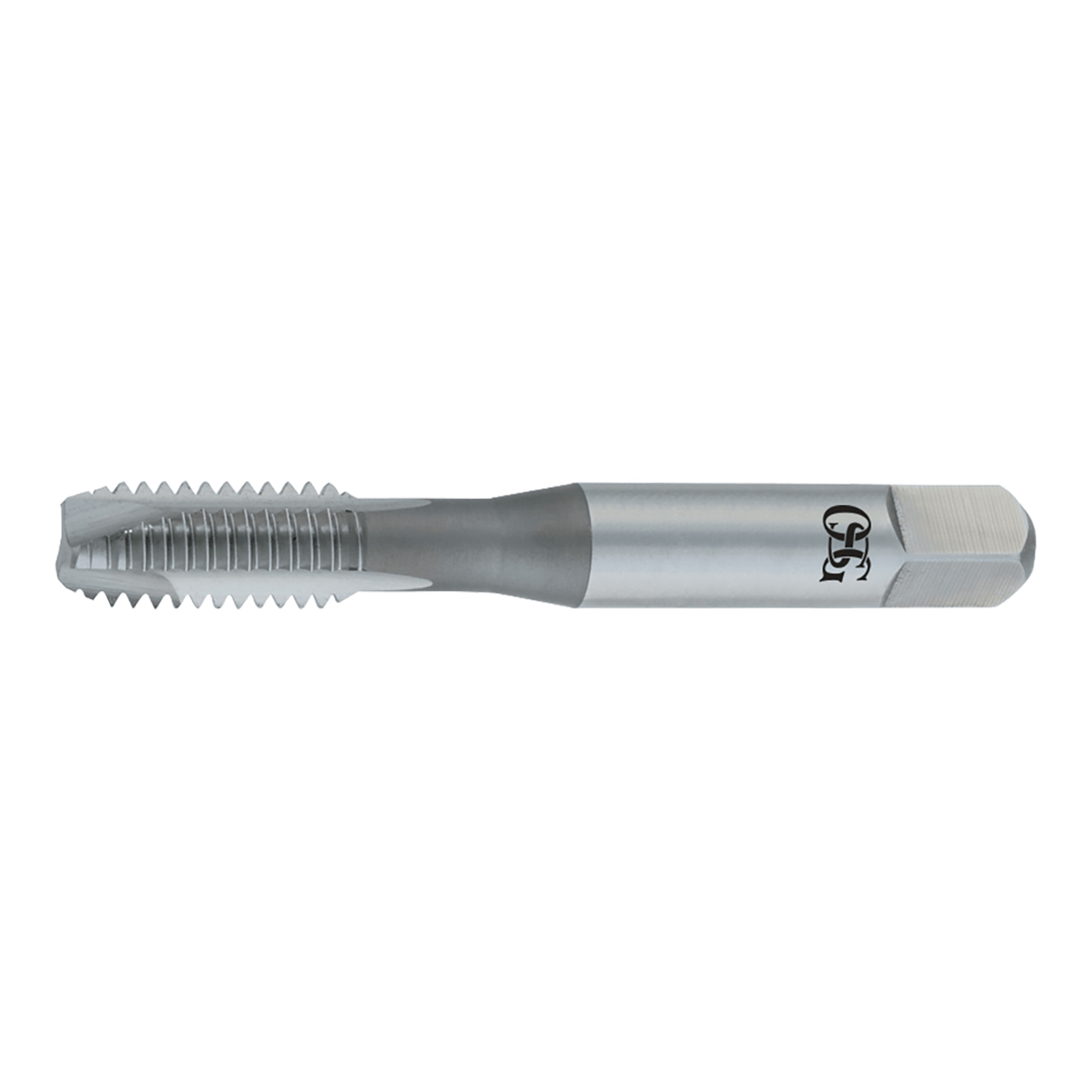

General Purpose tap series provides exceptional value for tapping helicoil (STI) threads in a variety of ferrous and nonferrous metals.
Features & Benefits:
- HSS material: Increased wear resistance
- Spiral Point: For through hole applications
- Inch & Metric: Complete Offering
- Screw Thread Insert (STI) tap: Repair stripped threaded holes
Product Specifications
| Manufacturer Part Number | 12500600 |
| Chamfer Length (Decimal Inch) | 0.308" |
| Chamfer Type | Plug (4P) |
| Cutting Direction | Right Hand |
| List Name | GENERAL PURPOSE-POT STI |
| Major Diameter (Decimal Inch) | 0.500" |
| Neck Length (Decimal Inch) | 1.562" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.811" |
| Shank Diameter (Decimal Inch) | 0.480" |
| Square Length (Decimal Inch) | 0.563" |
| Square Width (Decimal Inch) | 0.360" |
| Material | HSS |
| Coating | Bright |
| Tap Drill Size Maximum (Decimal Inch) | 0.527" |
| Tap Drill Size Minimum (Decimal Inch) | 0.517" |
| Thread Length (Decimal Inch) | 1.090 " |
| Thread Limit | h4 |
| Thread Size (Inch) | 1/2" |
| Thread Type | UNC STI |
| Thread Per Inch (TPI) | 13 TPI |
| Series | 125 |
| Product Type | Spiral Point STI Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
