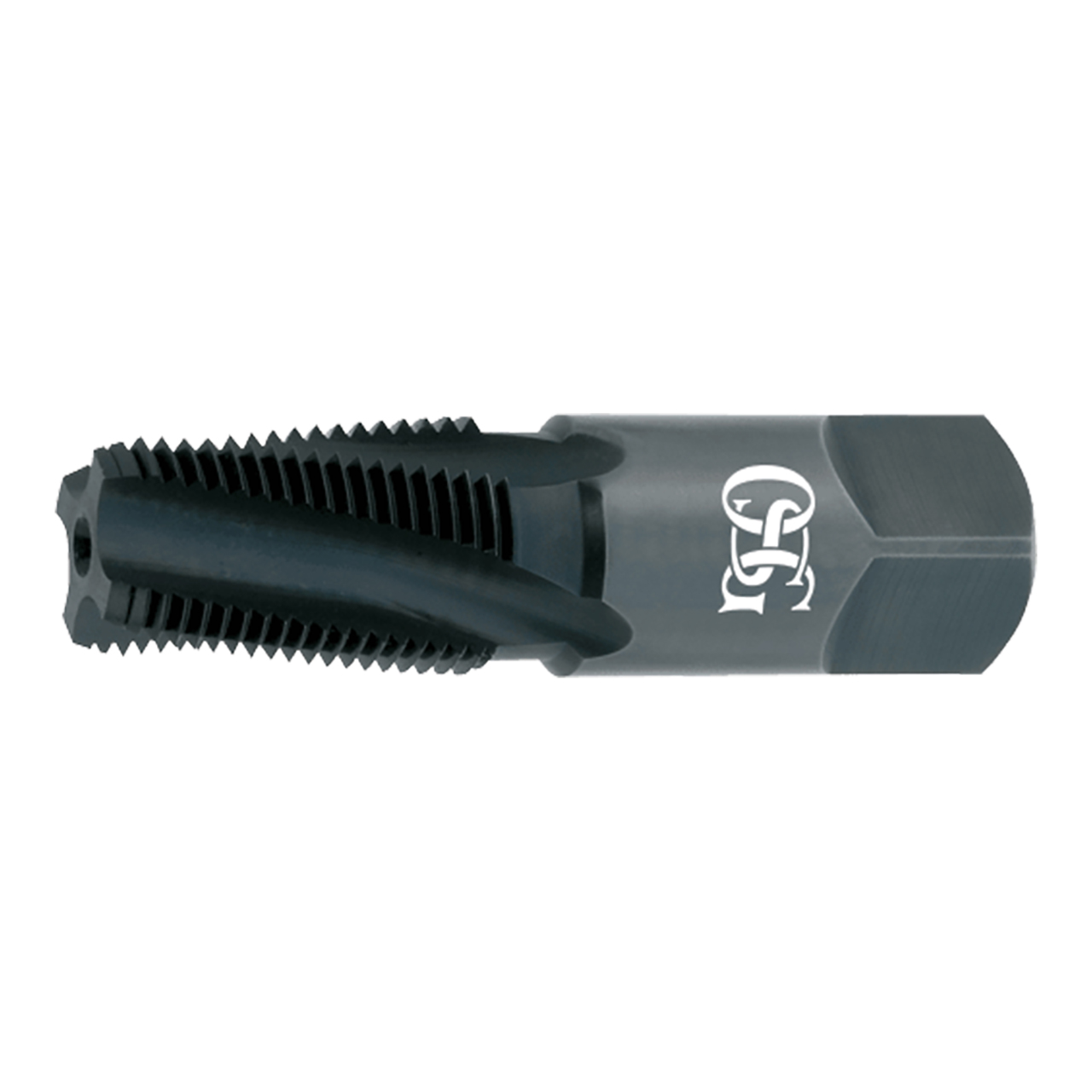

Name: OSG 1251408 | 1/4" - 18 Thread Size x 0.563" Shank x 1.062" Thread Length x 2.437" OAL NPTF 4 Flute Right Hand TiCN Coated HSS S125 Spiral Flute Pipe Tap
Brand: OSG
SKU: 17997132
Price: 50.64 USD
Availability: InStock

OSG 1251408 | 1/4" - 18 Thread Size x 0.563" Shank x 1.062" Thread Length x 2.437" OAL NPTF 4 Flute Right Hand TiCN Coated HSS S125 Spiral Flute Pipe Tap

$112.53 $50.64

(You save $61.89)

Brand:

OSG

Overall Length (Decimal Inch):

2.4370"

Shank Diameter (Decimal Inch):

0.5630"

Number of Flutes:

Material:

HSS

Finish/Coating:

TiCN

Cutting Direction:

Right Hand

interval quantity:

SKU:

17997132

UPC:

Weight:

0.13 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

General Purpose spiral point tap series that provides exceptional value for all general threading applications.

Features & Benefits:

HSS material: Increased wear resistance
Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
TiN, TiCN coating: Improves wear resistance for extended tap life
NPT & NPTF: For standard and dry seal tapered pipe thread applications

Product Specifications

Manufacturer Part Number	1251408
Major Diameter (Decimal Inch)	0.250"
Neck Length (Decimal Inch)	1.318"
Number of Flutes	4
Overall Length (Decimal Inch)	2.437"
Projection (Decimal Inch)	0.375"
Shank Diameter (Decimal Inch)	0.563"
Square Length (Decimal Inch)	0.438"
Square Width (Decimal Inch)	0.421"
Minimum Tap Drill Size (Decimal Inch)	0.438"
Thread Length (Decimal Inch)	1.062"
Thread Size (Inch)	1/4"
Coating	TiCN
Material	HSS
Helix Direction	Right Hand
Helix Angle (Degree)	15 Degree
Series	S125 Series
Product Type	Spiral Flute Pipe Tap
