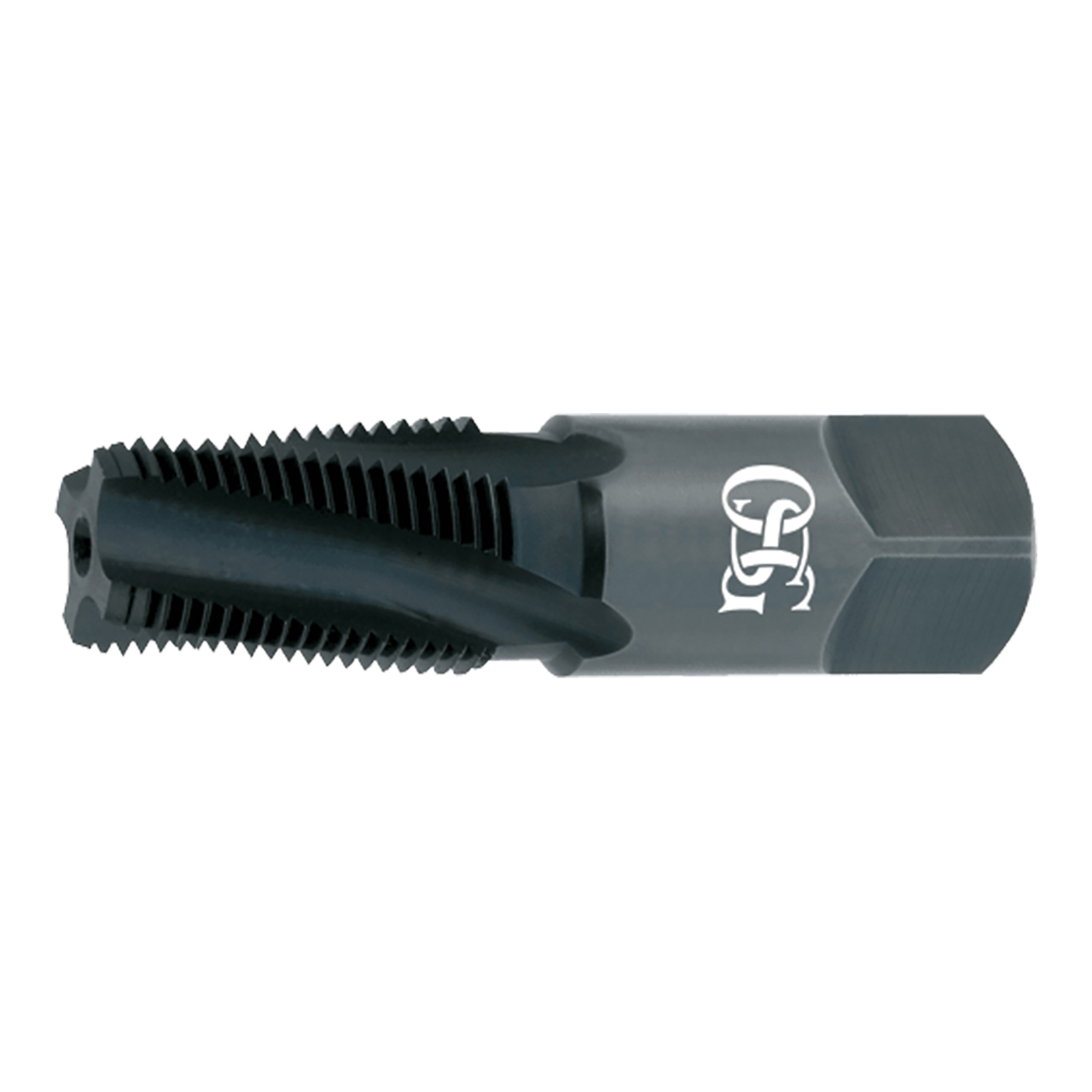

General Purpose spiral point tap series that provides exceptional value for all general threading applications.
Features & Benefits:
| Manufacturer Part Number | 1252201 |
| Major Diameter (Decimal Inch) | 0.500" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 3.126" |
| Projection (Decimal Inch) | 0.468" |
| Shank Diameter (Decimal Inch) | 0.688" |
| Square Length (Decimal Inch) | 0.625" |
| Square Width (Decimal Inch) | 0.515" |
| Minimum Tap Drill Size (Decimal Inch) | 0.703" |
| Thread Length (Decimal Inch) | 1.374" |
| Thread Size (Inch) | 1/2" |
| Coating | Steam Oxide |
| Material | HSS |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Series | S125 Series |
| Product Type | Spiral Flute Pipe Tap |
