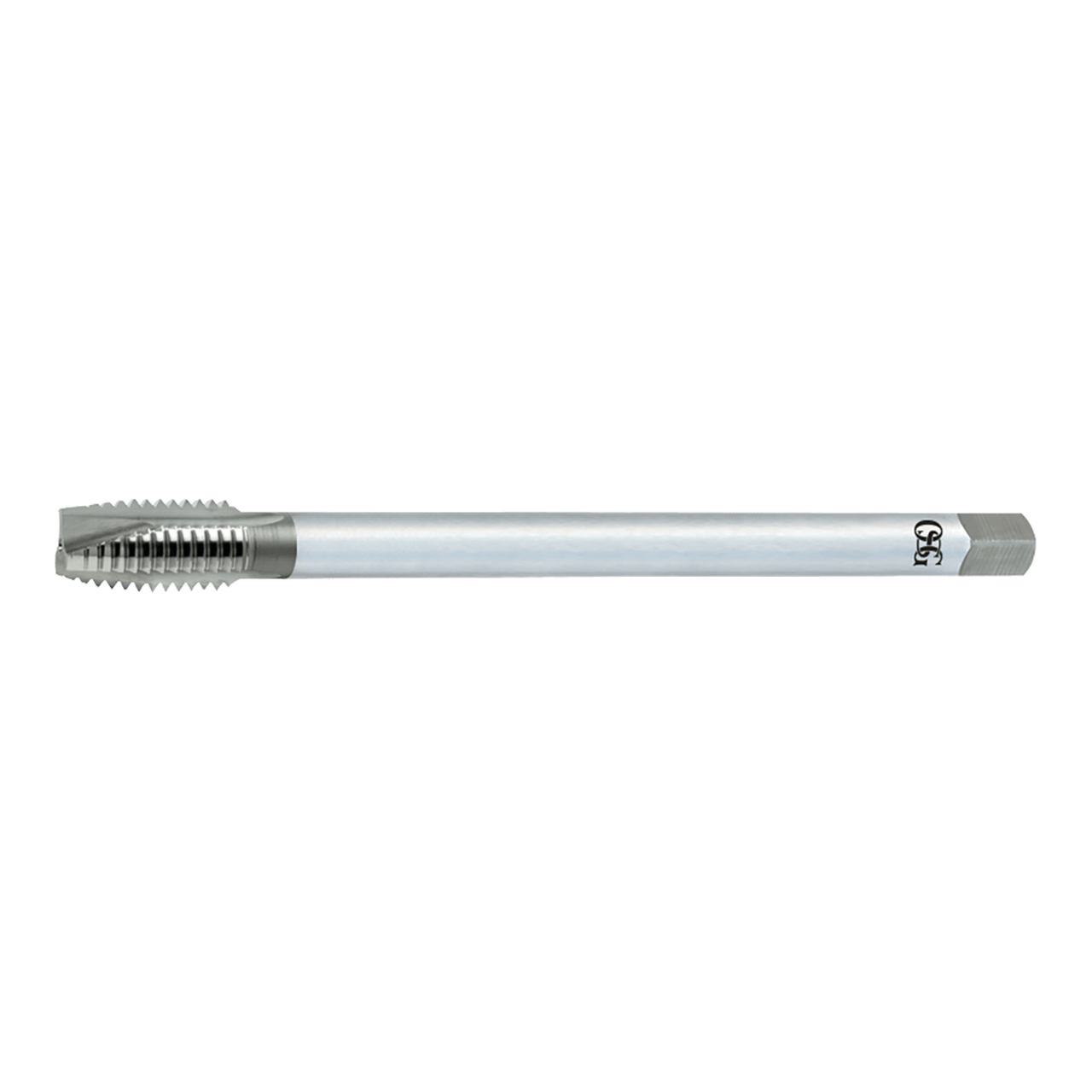

OSG 1294600 | #10- 24 Thread Size x 0.516" Thread Length x 6.000" OAL UNC H3 Plug (4P) Chamfer Type 2 Flute Right Hand Bright Coated HSS 917 Extension Tap

$90.97 $40.94
(You save $50.03)
Brand:
OSG
Number of Flutes:
2
Material:
HSS
Finish/Coating:
Bright
Flute Direction:
Right Hand
interval quantity:
1
SKU:
15029392
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1294600 | #10- 24 Thread Size x 0.516" Thread Length x 6.000" OAL UNC H3 Plug (4P) Chamfer Type 2 Flute Right Hand Bright Coated HSS 917 Extension Tap

General Purpose spiral point tap provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • Long Shank: Provides additional reach capability

Product Specifications
Manufacturer Part Number1294600
Chamfer Length (Decimal Inch)0.167"
Major Diameter (Decimal Inch)0.190"
Neck Length (Decimal Inch)0.886"
Number of Flutes2
Overall Length (Decimal Inch)6.000"
Shank Diameter (Decimal Inch)0.194"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.152"
Maximum Tap Drill Size (Decimal Inch)0.156"
Minimum Tap Drill Size (Decimal Inch)0.145"
Thread Length (Decimal Inch)0.516"
Thread Size NumberNo. 10
CoatingBright
MaterialHSS
Series917 Series
Product TypeExtension Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
