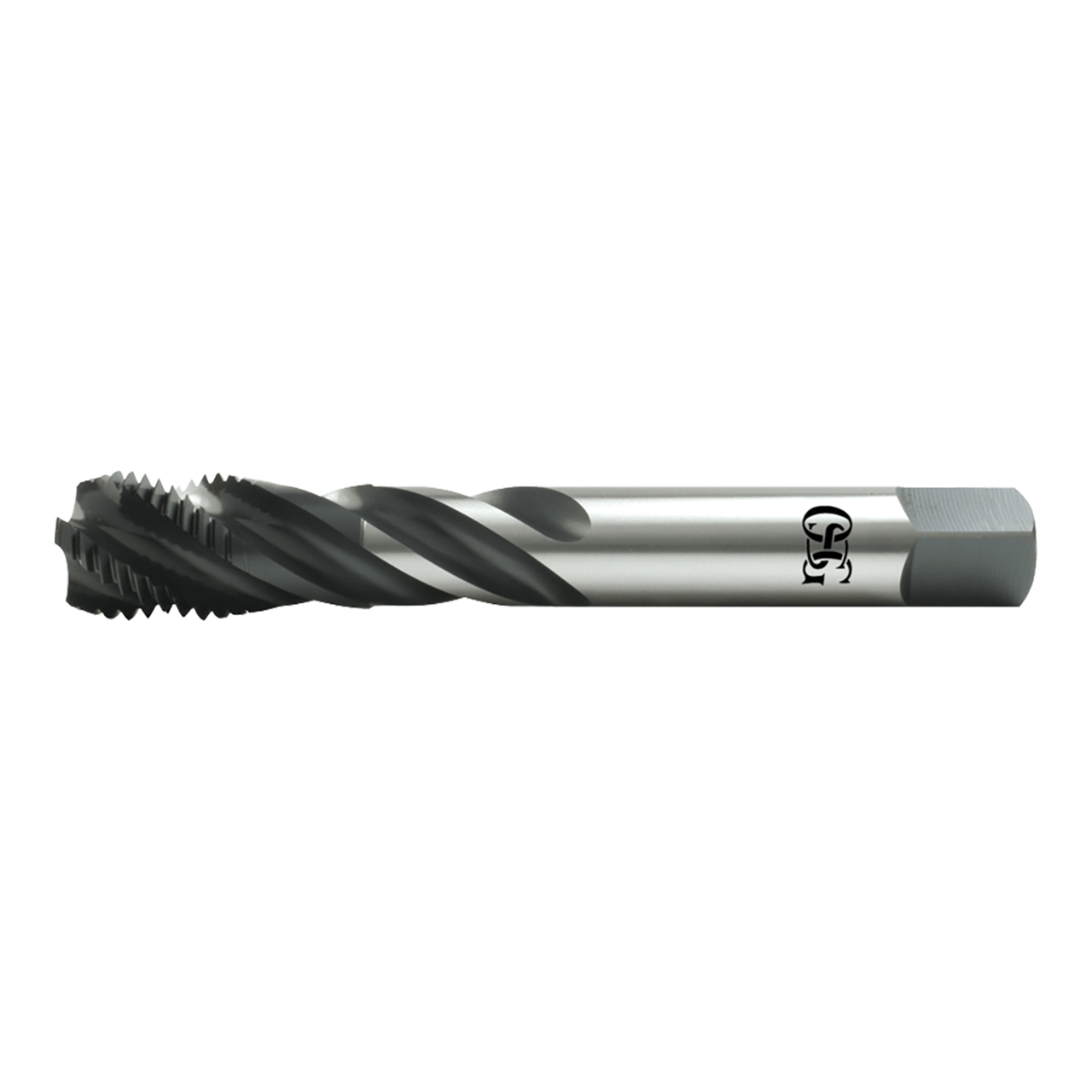

HY-PRO VXL Taps Vertical Tapping Solutions for the Oil & Gas Industry.
| Manufacturer Part Number | 1301503001 |
| Chamfer Length (Decimal Inch) | 0.208" |
| Chamfer Type | Modified Bottom (2.5P) |
| Class of Fit | 2B |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | VXL-SFT |
| Major Diameter (Decimal Inch) | 1.000" |
| Neck Length (Decimal Inch) | 2.000" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 5.512" |
| Shank Diameter (Decimal Inch) | 0.800" |
| Square Length (Decimal Inch) | 0.813" |
| Square Width (Decimal Inch) | 0.600" |
| Material | HSSE |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (Decimal Inch) | 0.928" |
| Tap Drill Size Minimum (Decimal Inch) | 0.910" |
| Thread Length (Decimal Inch) | 0.665" |
| Thread Size (Inch) | 1" |
| Thread Type | UNF |
| Thread Per Inch (TPI) | 12 TPI |
| Series | 13015 |
| Product Type | Spiral Flute Tap |
