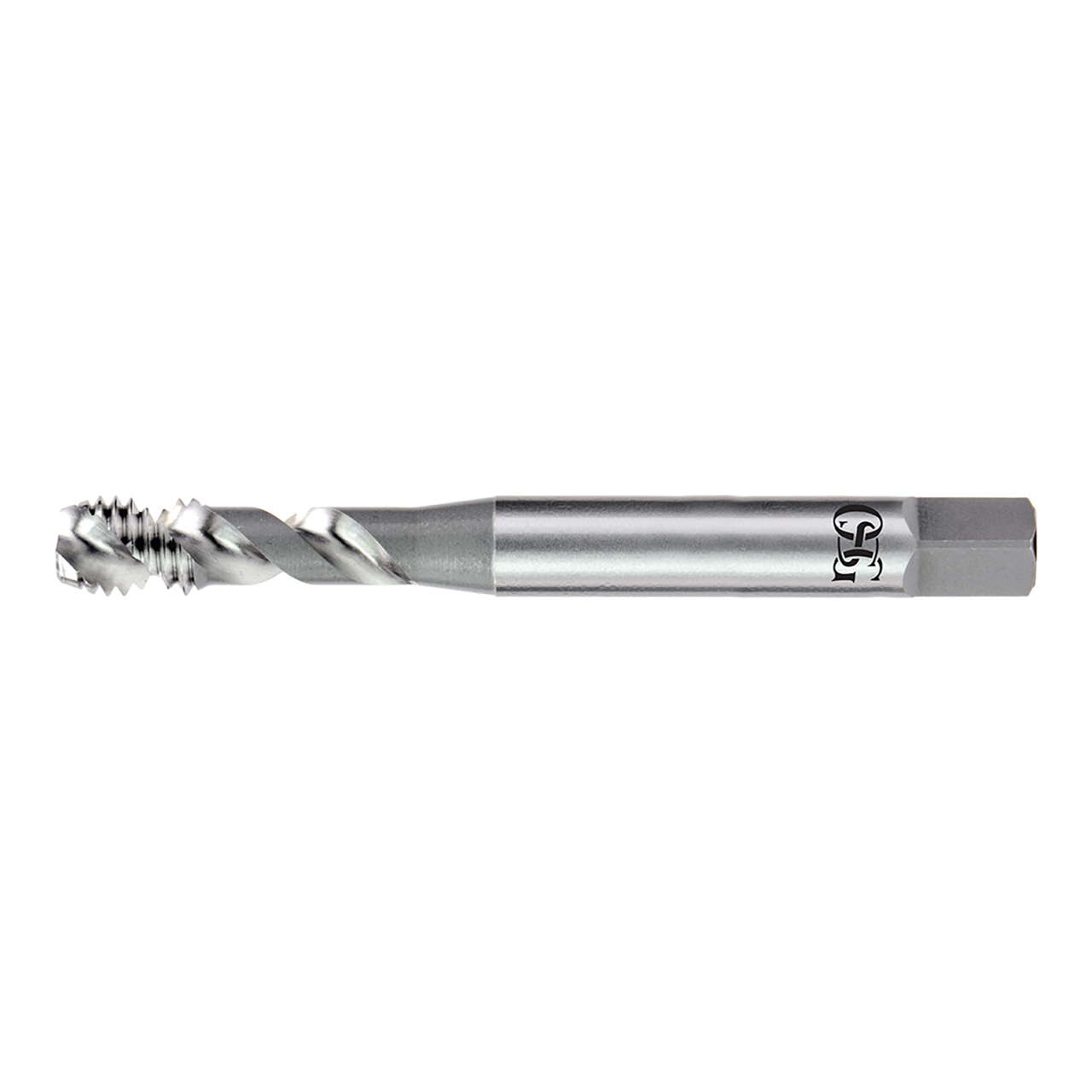

OSG 1301900403 | HY-PRO TAP UNC #8 - 32 Thread Size x 0.168" Shank x 0.251" Length x 2.480" OAL Modified Bottom (2.5P) Chamfer H3 3 Flute Nitride Coated HSSE 13019 Spiral Flute Tap

OSG 1301900403 | HY-PRO TAP UNC #8 - 32 Thread Size x 0.168" Shank x 0.251" Length x 2.480" OAL Modified Bottom (2.5P) Chamfer H3 3 Flute Nitride Coated HSSE 13019 Spiral Flute Tap

SKU: 18005822 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$35.79 $21.83
(You save $13.96)
Shipping: Calculated at Checkout

About This Item

HY-PRO AL DIN is a premium spiral flute tap for Alloy and Cast Aluminum.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Nitride surface treatment: Extra surface hardness for longer life
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number1301900403
Chamfer Length (Decimal Inch)0.078"
Major Diameter (Decimal Inch)0.164"
Neck Length (Decimal Inch)0.826"
Number of Flutes3
Overall Length (Decimal Inch)2.480"
Shank Diameter (Decimal Inch)0.168"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.131"
Maximum Tap Drill Size (Decimal Inch)0.139"
Minimum Tap Drill Size (Decimal Inch)0.130"
Thread Length (Decimal Inch)0.251"
Thread Size NumberNo. 8
CoatingNitride
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)50 Degree
Series13019 Series
Product TypeSpiral Flute Tap
