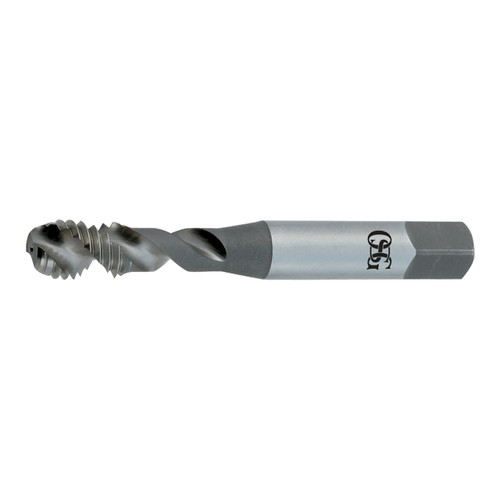

Name: OSG 1301900603 | HY-PRO #10- 32 Thread Size x 0.194" Shank x 0.326" Thread Length x 2.756" OAL UNF H3 Modified Bottom (2.5P) Chamfer Type 3 Flute Right Hand Nitride Coated HSSE 13019 Spiral Flute Tap
Brand: OSG
SKU: 18005823
Price: 19.85 USD
Availability: InStock

OSG 1301900603 | HY-PRO #10- 32 Thread Size x 0.194" Shank x 0.326" Thread Length x 2.756" OAL UNF H3 Modified Bottom (2.5P) Chamfer Type 3 Flute Right Hand Nitride Coated HSSE 13019 Spiral Flute Tap

$32.54 $19.85

(You save $12.69)

Brand:

OSG

Overall Length (Decimal Inch):

2.7560"

Number of Flutes:

Material:

HSSE

Finish/Coating:

Nitride

Flute Direction:

Right Hand

interval quantity:

SKU:

18005823

UPC:

Weight:

0.02 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

HY-PRO AL DIN is a premium spiral flute tap for Alloy and Cast Aluminum.

Features & Benefits:

HSSE material: Increased wear resistance
Spiral Flute: For blind hole applications
Nitride surface treatment: Extra surface hardness for longer life
DIN Overall Length: Provides greater reach capability

Product Specifications

Manufacturer Part Number	1301900603
Chamfer Length (Decimal Inch)	0.078"
Major Diameter (Decimal Inch)	0.190"
Neck Length (Decimal Inch)	0.976"
Number of Flutes	3
Overall Length (Decimal Inch)	2.756"
Shank Diameter (Decimal Inch)	0.194"
Square Length (Decimal Inch)	0.250"
Square Width (Decimal Inch)	0.152"
Maximum Tap Drill Size (Decimal Inch)	0.164"
Minimum Tap Drill Size (Decimal Inch)	0.156"
Thread Length (Decimal Inch)	0.326"
Thread Size Number	No. 10
Coating	Nitride
Material	HSSE
Helix Direction	Right Hand
Helix Angle (Degree)	50 Degree
Series	13019 Series
Product Type	Spiral Flute Tap
