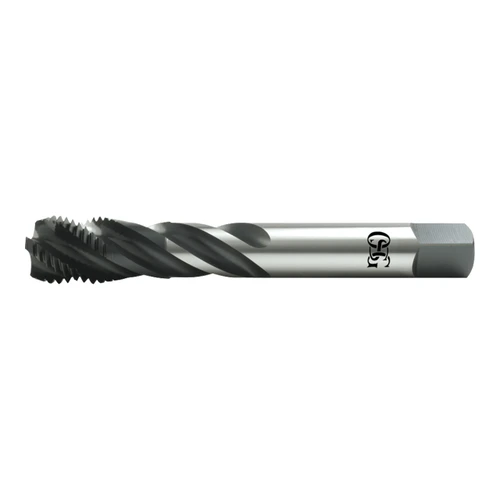

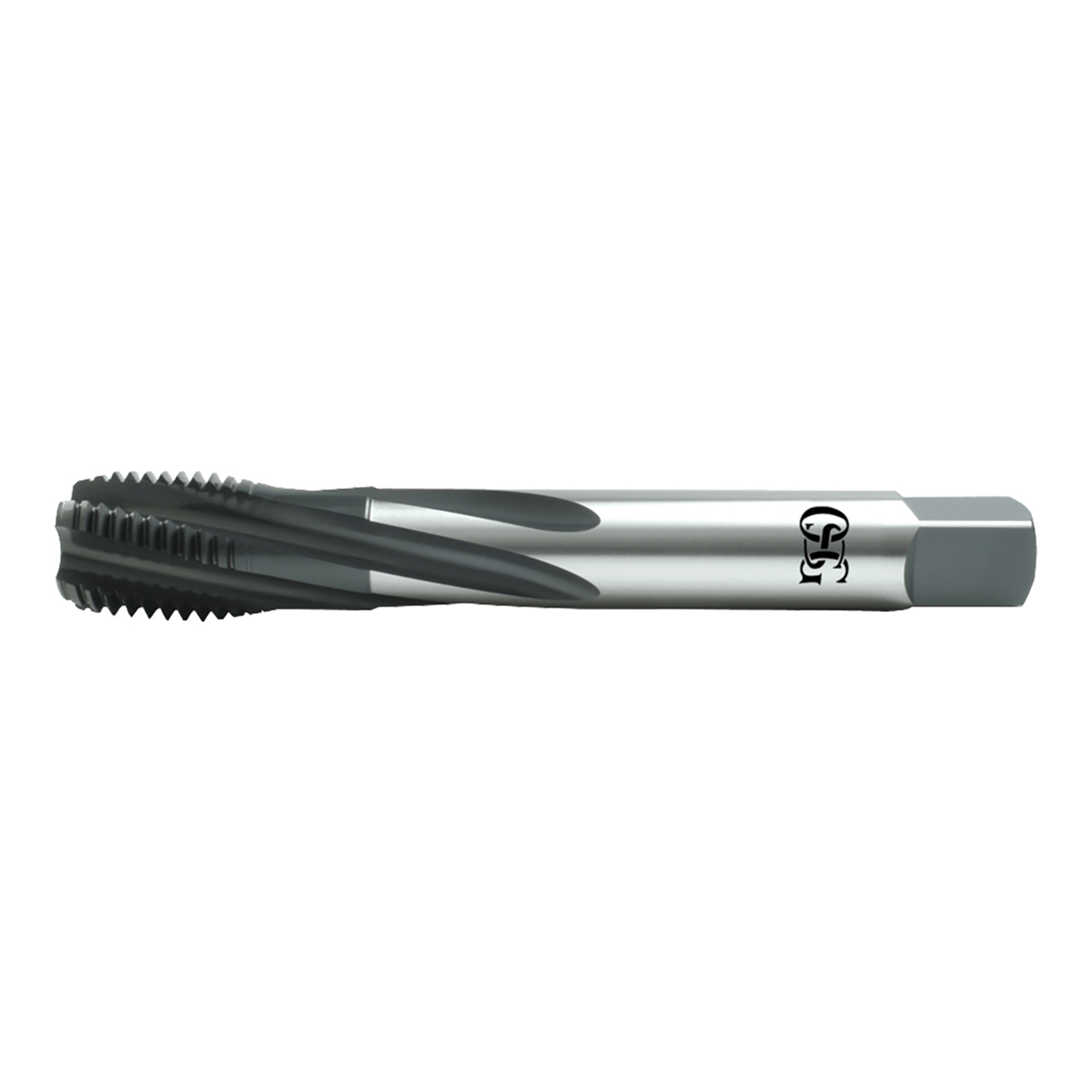

HY-PRO HXL-OIL Taps Horizontal Tapping Solutions for the Oil & Gas Industry
| Manufacturer Part Number | 1302403201 |
| Chamfer Length (Decimal Inch) | 0.208" |
| Major Diameter (Decimal Inch) | 1.250" |
| Neck Length (Decimal Inch) | 2.500" |
| Number of Flutes | 5 |
| Overall Length (Decimal Inch) | 5.906" |
| Shank Diameter (Decimal Inch) | 1.021" |
| Square Length (Decimal Inch) | 1.000" |
| Square Width (Decimal Inch) | 0.766" |
| Maximum Tap Drill Size (Decimal Inch) | 1.178" |
| Minimum Tap Drill Size (Decimal Inch) | 1.160" |
| Thread Length (Decimal Inch) | 0.665" |
| Thread Size (Inch) | 1-1/4" |
| Coating | Steam Oxide |
| Material | HSSE |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Series | 13024 Series |
| Product Type | Spiral Flute Tap |
