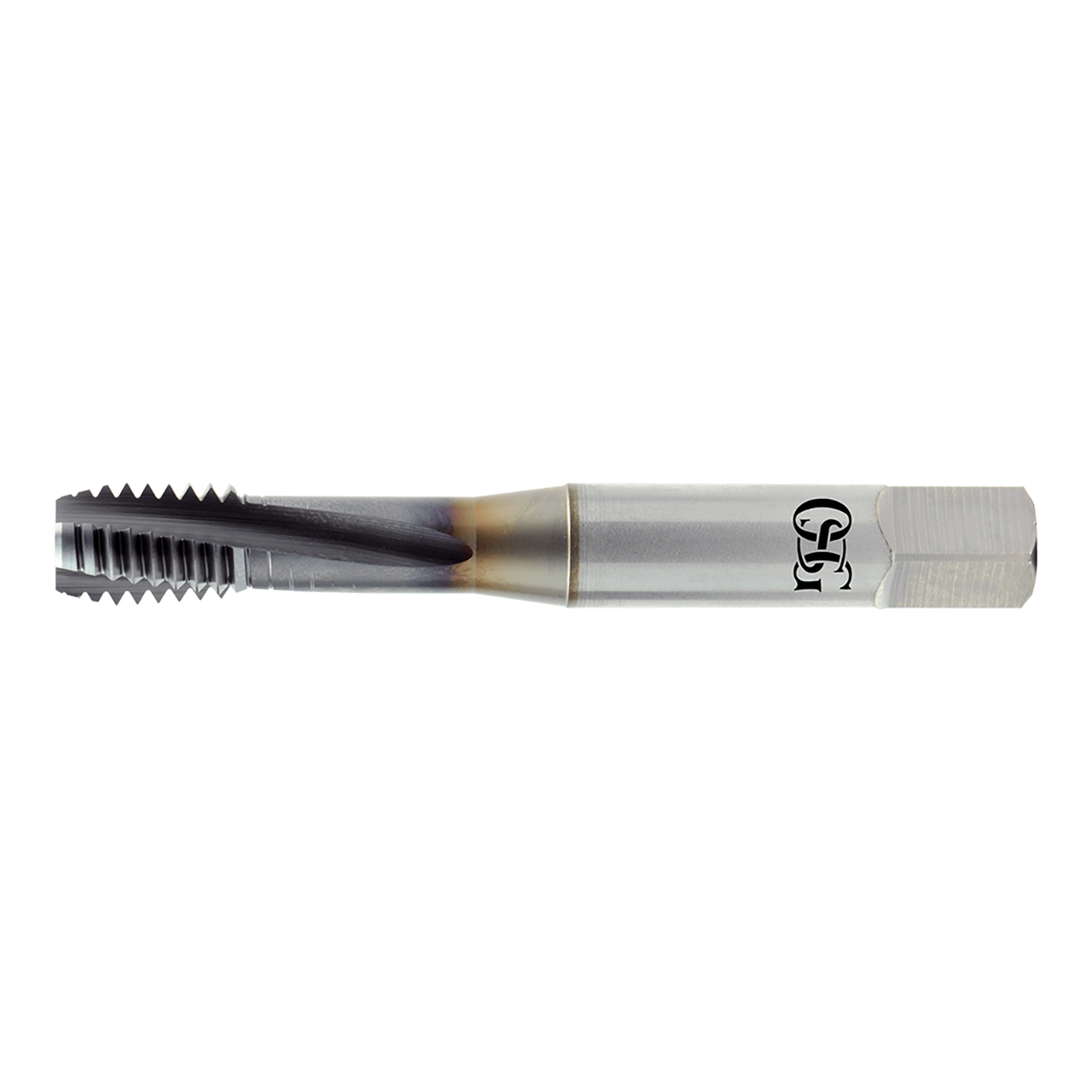

OSG 1305710108 | EXO #2- 56 Thread Size x 0.141" Shank x 0.437" Thread Length x 1.750" OAL UNC H2 Modified Bottom (2.5P) Chamfer Type 3 Flute Right Hand V Coated VC-10 313TI Spiral Flute Tap

$97.48 $90.66
(You save $6.82)
Brand:
OSG
Overall Length (Decimal Inch):
1.7500"
Number of Flutes:
3
Material:
VC-10
Finish/Coating:
V
Flute Direction:
Right Hand
interval quantity:
1
SKU:
15030091
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1305710108 | EXO #2- 56 Thread Size x 0.141" Shank x 0.437" Thread Length x 1.750" OAL UNC H2 Modified Bottom (2.5P) Chamfer Type 3 Flute Right Hand V Coated VC-10 313TI Spiral Flute Tap

EXOTAP VC-10 Ti is the premium solution for Titanium alloys and Heat Resistant Super Alloys.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For blind hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number1305710108
Chamfer Length (Decimal Inch)0.045"
Major Diameter (Decimal Inch)0.086"
Number of Flutes3
Overall Length (Decimal Inch)1.750"
Shank Diameter (Decimal Inch)0.141"
Square Length (Decimal Inch)0.188"
Square Width (Decimal Inch)0.110"
Maximum Tap Drill Size (Decimal Inch)0.074"
Minimum Tap Drill Size (Decimal Inch)0.067"
Thread Length (Decimal Inch)0.437"
Thread Size NumberNo. 2
CoatingV
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)10 Degree
Series313TI Series
Product TypeSpiral Flute Tap
