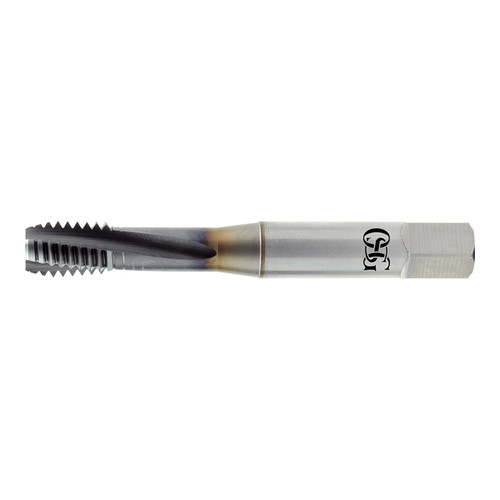

OSG 1305714308 | EXOTAP UNC 7/8" - 9 Thread Size x 0.697" Shank x 0.890" Length x 4.688" OAL Modified Bottom (2.5P) Chamfer H5 4 Flute V Coated VC-10 313TI Spiral Flute Tap

OSG 1305714308 | EXOTAP UNC 7/8" - 9 Thread Size x 0.697" Shank x 0.890" Length x 4.688" OAL Modified Bottom (2.5P) Chamfer H5 4 Flute V Coated VC-10 313TI Spiral Flute Tap

SKU: 15030122 Weight: 0.47 LBS Minimum Purchase: 1 unit
UPC:
$357.15 $332.15
(You save $25.00)
Shipping: Free Shipping

About This Item

EXOTAP VC-10 Ti is the premium solution for Titanium alloys and Heat Resistant Super Alloys.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For blind hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number1305714308
Chamfer Length (Decimal Inch)0.278"
Major Diameter (Decimal Inch)0.875"
Neck Length (Decimal Inch)2.654"
Number of Flutes4
Overall Length (Decimal Inch)4.688"
Shank Diameter (Decimal Inch)0.697"
Square Length (Decimal Inch)0.750"
Square Width (Decimal Inch)0.523"
Maximum Tap Drill Size (Decimal Inch)0.778"
Minimum Tap Drill Size (Decimal Inch)0.755"
Thread Length (Decimal Inch)0.890"
Thread Size (Inch)7/8"
CoatingV
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)10 Degree
Series313TI Series
Product TypeSpiral Flute Tap
