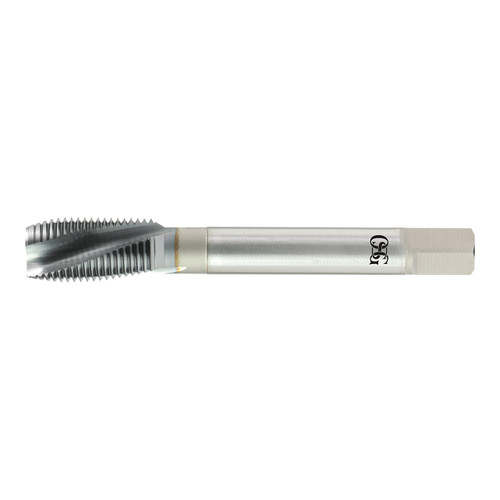

OSG 1306300708 | EXOPRO UNC 1/4" - 2 Thread Size x 0.255" Shank x 0.594" Length x 2.500" OAL Plug (4.5P) Chamfer H3 3 Flute V Coated VC-10 13063 Spiral Point Tap

OSG 1306300708 | EXOPRO UNC 1/4" - 2 Thread Size x 0.255" Shank x 0.594" Length x 2.500" OAL Plug (4.5P) Chamfer H3 3 Flute V Coated VC-10 13063 Spiral Point Tap

SKU: 17997500 Weight: 0.03 LBS Minimum Purchase: 1 unit
UPC:
$58.08 $38.91
(You save $19.17)
Shipping: Calculated at Checkout

About This Item

Features & Benefits:

  • Full Eccentric relief: Free cutting produces less friction, thereby less heat generation to wear the tap.
  • Left hand spiral (LHS): Reverese the direction of chip flow out the front of the hole to eliminate chip packing.
  • Multi-layered TiCN (V) coating from OSG: The layered configuration resists thermal cracking while increasing surface hardness to extend life up to 3X vs monolayered TiCN.

Product Specifications
Manufacturer Part Number1306300708
Chamfer Length (Decimal Inch)0.225"
Major Diameter (Decimal Inch)0.250"
Neck Length (Decimal Inch)0.997"
Number of Flutes3
Overall Length (Decimal Inch)2.500"
Shank Diameter (Decimal Inch)0.255"
Square Length (Decimal Inch)0.313"
Square Width (Decimal Inch)0.191"
Maximum Tap Drill Size (Decimal Inch)0.207"
Minimum Tap Drill Size (Decimal Inch)0.196"
Thread Length (Decimal Inch)0.594"
Thread Size (Inch)1/4"
CoatingV
MaterialVC-10
Helix DirectionLeft Hand
Helix Angle (Degree)21 Degree
Series13063 Series
Product TypeSpiral Point Tap
