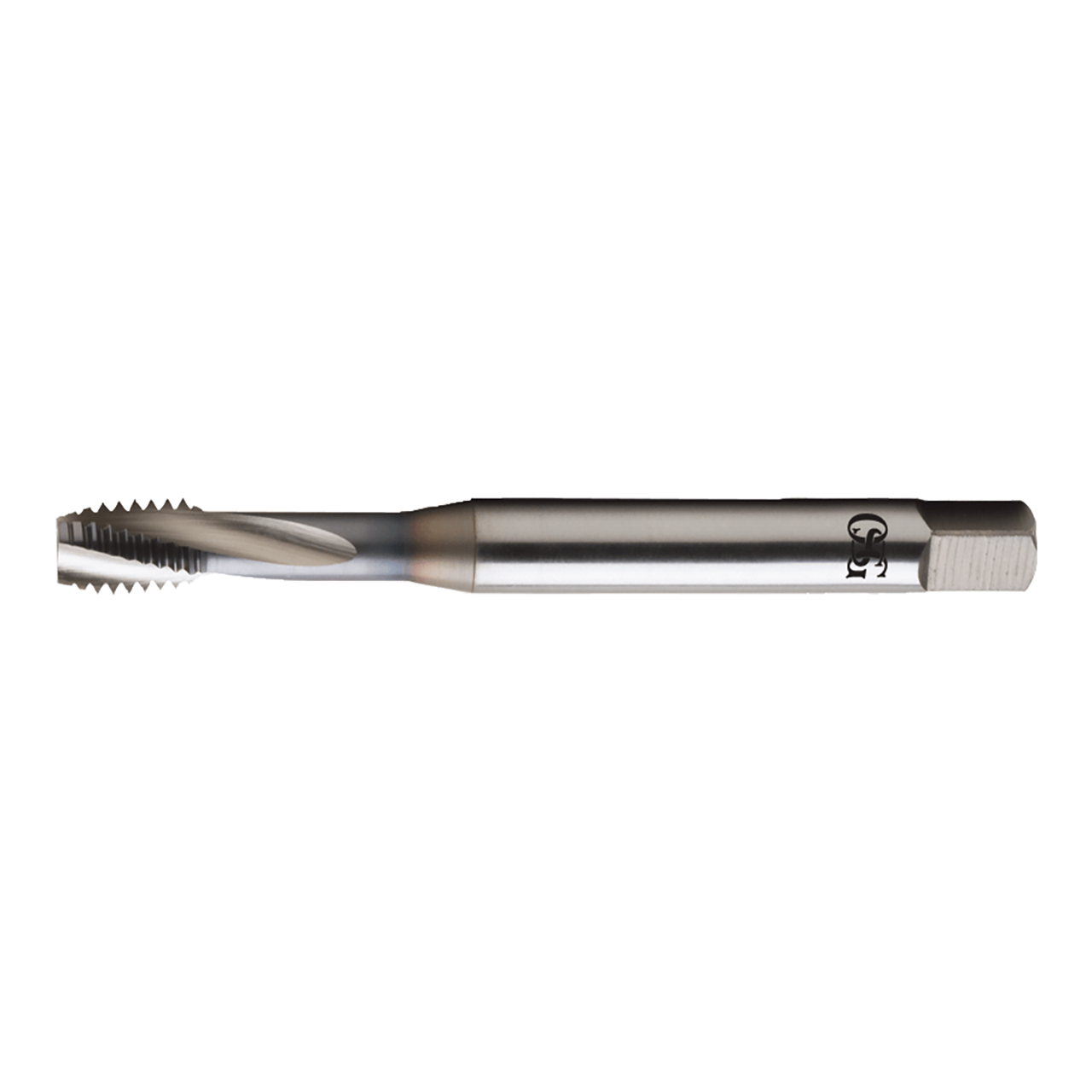

HY-PRO ALLOY Taps High Performance Spiral Flute Taps for Alloy Steels.
| Manufacturer Part Number | 1311300808 |
| Chamfer Length (Decimal Inch) | 0.089" |
| Chamfer Type | Bottom (1.5P) |
| Class of Fit | 6H |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Helix Direction | Right Hand |
| List Name | ALLOY OIL-V-SFT |
| Major Diameter (mm) | 10.00mm |
| Neck Length (mm) | 38.90mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 100.00mm |
| Pitch (mm) | 1.50mm |
| Shank Diameter (mm) | 9.68mm |
| Square Length (mm) | 11.11mm |
| Square Width (mm) | 7.26mm |
| Material | HSSE |
| Coating | V |
| Tap Drill Size Maximum (mm) | 8.68mm |
| Tap Drill Size Minimum (mm) | 8.38mm |
| Thread Length (mm) | 12.00mm |
| Thread Size | M10 |
| Thread Type | M |
| Series | 13113 |
| Product Type | Spiral Flute Tap |
