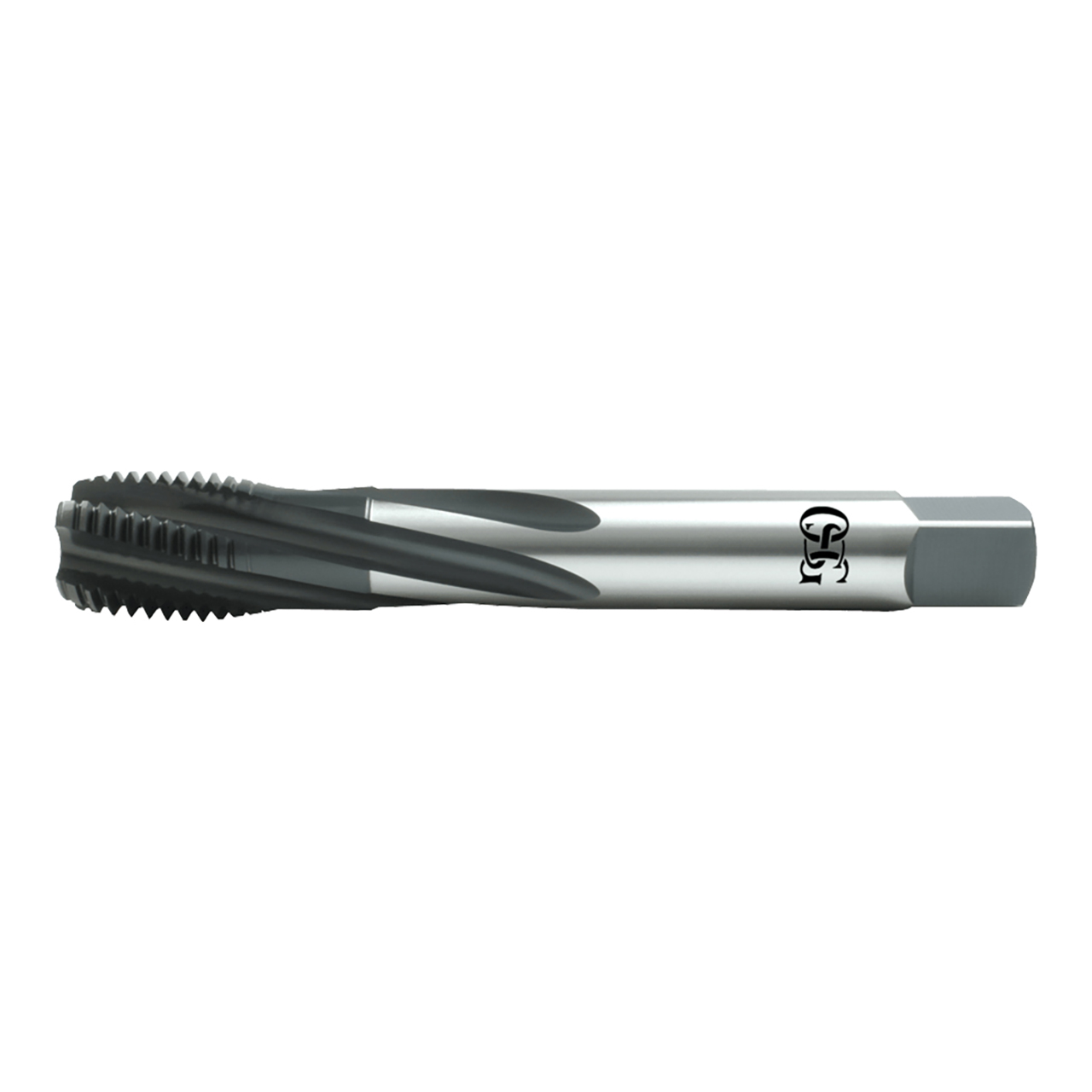

HY-PRO HXL-W Taps Horizontal Tapping Solutions for the Wind Energy Industry.
| Manufacturer Part Number | 1311602501 |
| Chamfer Length (Decimal Inch) | 0.197" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Helix Direction | Right Hand |
| List Name | HXL-W-SFT |
| Major Diameter (mm) | 16.00mm |
| Neck Length (mm) | 93.00mm |
| Number of Flutes | 4 |
| Overall Length (mm) | 180.00mm |
| Pitch (mm) | 2.00mm |
| Shank Diameter (mm) | 12.19mm |
| Square Length (mm) | 14.29mm |
| Square Width (mm) | 9.14mm |
| Material | HSSE |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (mm) | 14.21mm |
| Tap Drill Size Minimum (mm) | 13.84mm |
| Thread Length (mm) | 16.00mm |
| Thread Limit | D7 |
| Thread Size | M16 |
| Thread Type | M |
| Series | 13116 |
| Product Type | Spiral Flute Tap |
