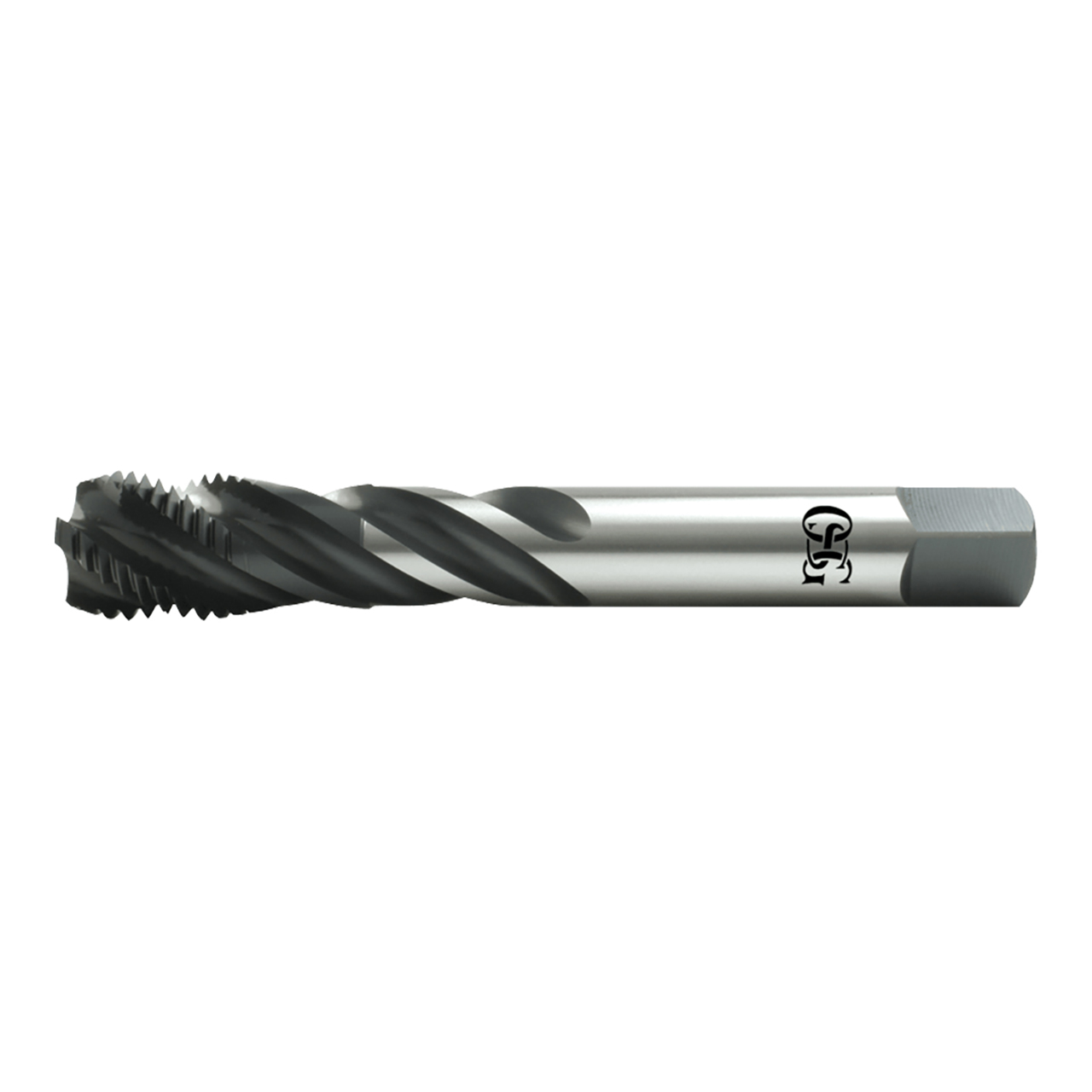

OSG 1311700601 | HY-PRO TAP M M27.00x3.00mm Thread Size x 22.76mm Shank x 24.00mm Length x 16.00mm OAL Modified Bottom (2.5P) Chamfer D9 5 Flute Steam Oxide Coated HSSE 13117 Spiral Flute Tap

$465.36 $283.87
(You save $181.49)
Brand:
OSG
Thread Size (mm):
27.00mm
Class of Fit:
6H
Thread Limit:
D9
Number of Flutes:
5
Chamfer:
Modified Bottom (2.5P)
Material:
HSSE
Finish/Coating:
Steam Oxide
Thread Direction:
Right Hand
Overall Length (mm):
160.00mm
interval quantity:
1
SKU:
15029630
UPC:
Weight:
0.95 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
OSG 1311700601 | HY-PRO TAP M M27.00x3.00mm Thread Size x 22.76mm Shank x 24.00mm Length x 16.00mm OAL Modified Bottom (2.5P) Chamfer D9 5 Flute Steam Oxide Coated HSSE 13117 Spiral Flute Tap

HY-PRO VXL-W Taps Vertical Tapping Solutions for the Wind Energy Industry


Product Specifications
Manufacturer Part Number1311700601
Chamfer Length (Decimal Inch)0.295"
Major Diameter (mm)27.00mm
Number of Flutes5
Overall Length (mm)160.00mm
Pitch (mm)3.00mm
Shank Diameter (mm)22.76mm
Square Length (mm)22.23mm
Square Width (mm)17.07mm
Maximum Tap Drill Size (mm)24.25mm
Minimum Tap Drill Size (mm)23.75mm
Thread Length (mm)24.00mm
Thread SizeM27
CoatingSteam Oxide
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series13117 Series
Product TypeSpiral Flute Tap
