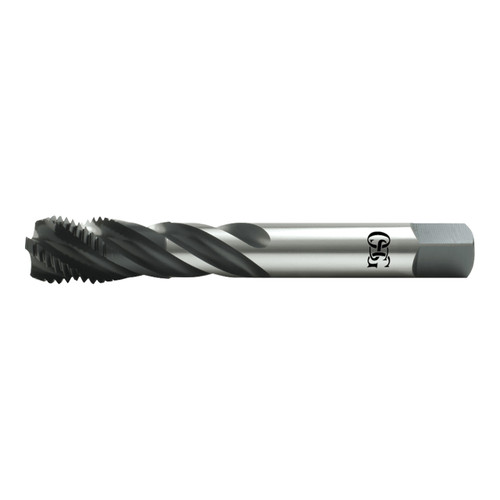

OSG 1311702401 | HY-PRO TAP M M16.00x2.00mm Thread Size x 12.19mm Shank x 16.00mm Length x 11.00mm OAL Modified Bottom (2.5P) Chamfer D7 4 Flute Steam Oxide Coated HSSE 13117 Spiral Flute Tap

OSG 1311702401 | HY-PRO TAP M M16.00x2.00mm Thread Size x 12.19mm Shank x 16.00mm Length x 11.00mm OAL Modified Bottom (2.5P) Chamfer D7 4 Flute Steam Oxide Coated HSSE 13117 Spiral Flute Tap

SKU: 15029635 Weight: 0.21 LBS Minimum Purchase: 1 unit
UPC:
$173.68 $105.94
(You save $67.74)
Shipping: Calculated at Checkout

About This Item

HY-PRO VXL-W Taps Vertical Tapping Solutions for the Wind Energy Industry


Product Specifications
Manufacturer Part Number1311702401
Chamfer Length (Decimal Inch)0.197"
Major Diameter (mm)16.00mm
Number of Flutes4
Overall Length (mm)110.00mm
Pitch (mm)2.00mm
Shank Diameter (mm)12.19mm
Square Length (mm)14.29mm
Square Width (mm)9.14mm
Maximum Tap Drill Size (mm)14.21mm
Minimum Tap Drill Size (mm)13.84mm
Thread Length (mm)16.00mm
Thread SizeM16
CoatingSteam Oxide
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series13117 Series
Product TypeSpiral Flute Tap
