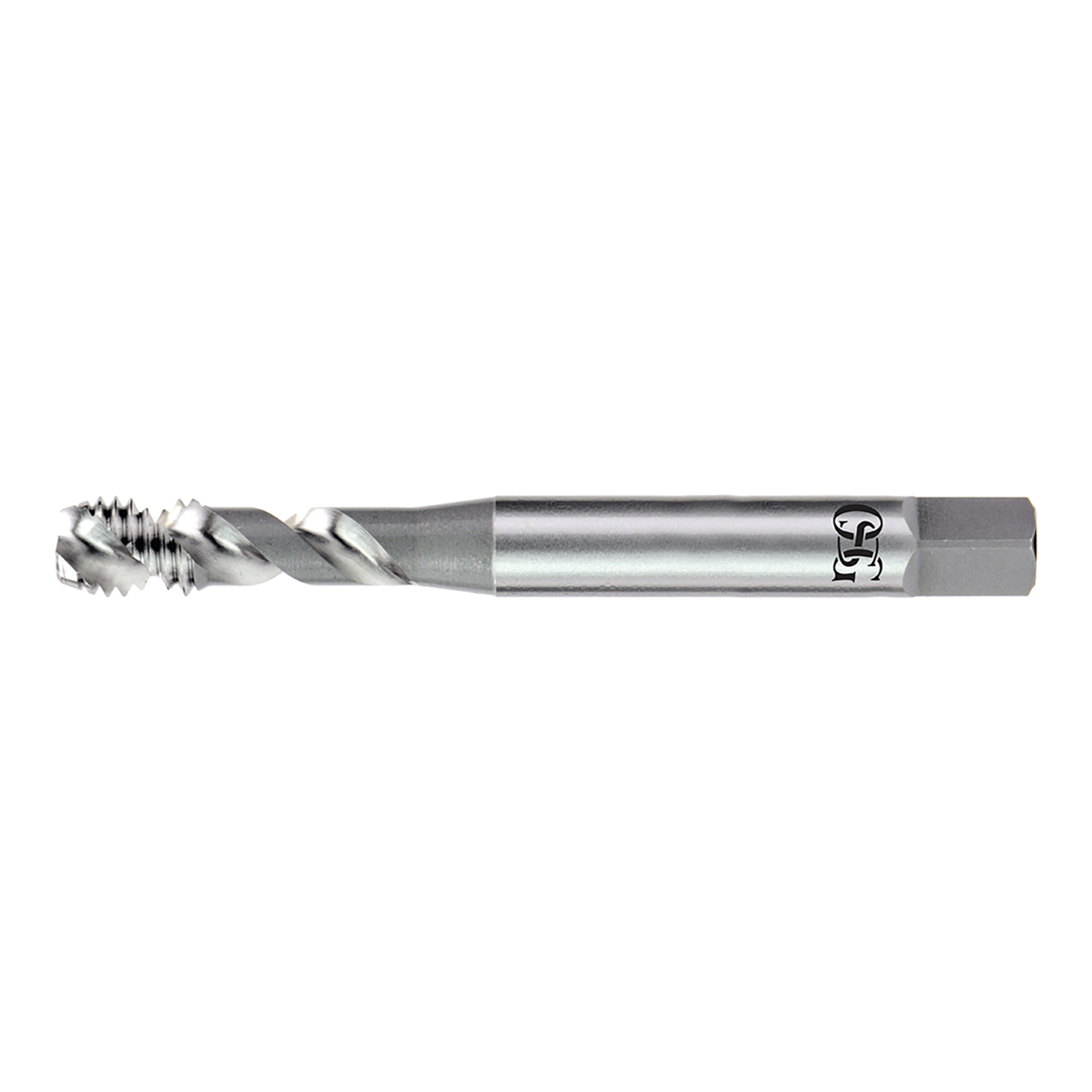

OSG 1311900503 | HY-PRO TAP M M6.00x1.00mm Thread Size x 6.48mm Shank x 1.00mm Length x 8.00mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute Nitride Coated HSSE 13119 Spiral Flute Tap

OSG 1311900503 | HY-PRO TAP M M6.00x1.00mm Thread Size x 6.48mm Shank x 1.00mm Length x 8.00mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute Nitride Coated HSSE 13119 Spiral Flute Tap

SKU: 17997623 Weight: 0.04 LBS Minimum Purchase: 1 unit
UPC:
$50.68 $30.91
(You save $19.77)
Shipping: Calculated at Checkout

About This Item

HY-PRO AL DIN is a premium spiral flute tap for Alloy and Cast Aluminum.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Nitride surface treatment: Extra surface hardness for longer life
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number1311900503
Chamfer Length (Decimal Inch)0.098"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)50 Degree
Helix DirectionRight Hand
List NameAL-DIN EX-AL-SFT
Major Diameter (mm)6.00mm
Neck Length (mm)28.00mm
Number of Flutes3
Overall Length (mm)80.00mm
Pitch (mm)1.00mm
Shank Diameter (mm)6.48mm
Square Length (mm)7.94mm
Square Width (mm)4.85mm
MaterialHSSE
CoatingNitride
Tap Drill Size Maximum (mm)5.15mm
Tap Drill Size Minimum (mm)4.92mm
Thread Length (mm)10.00mm
Thread LimitD5
Thread SizeM6
Thread TypeM
Series13119
Product TypeSpiral Flute Tap
