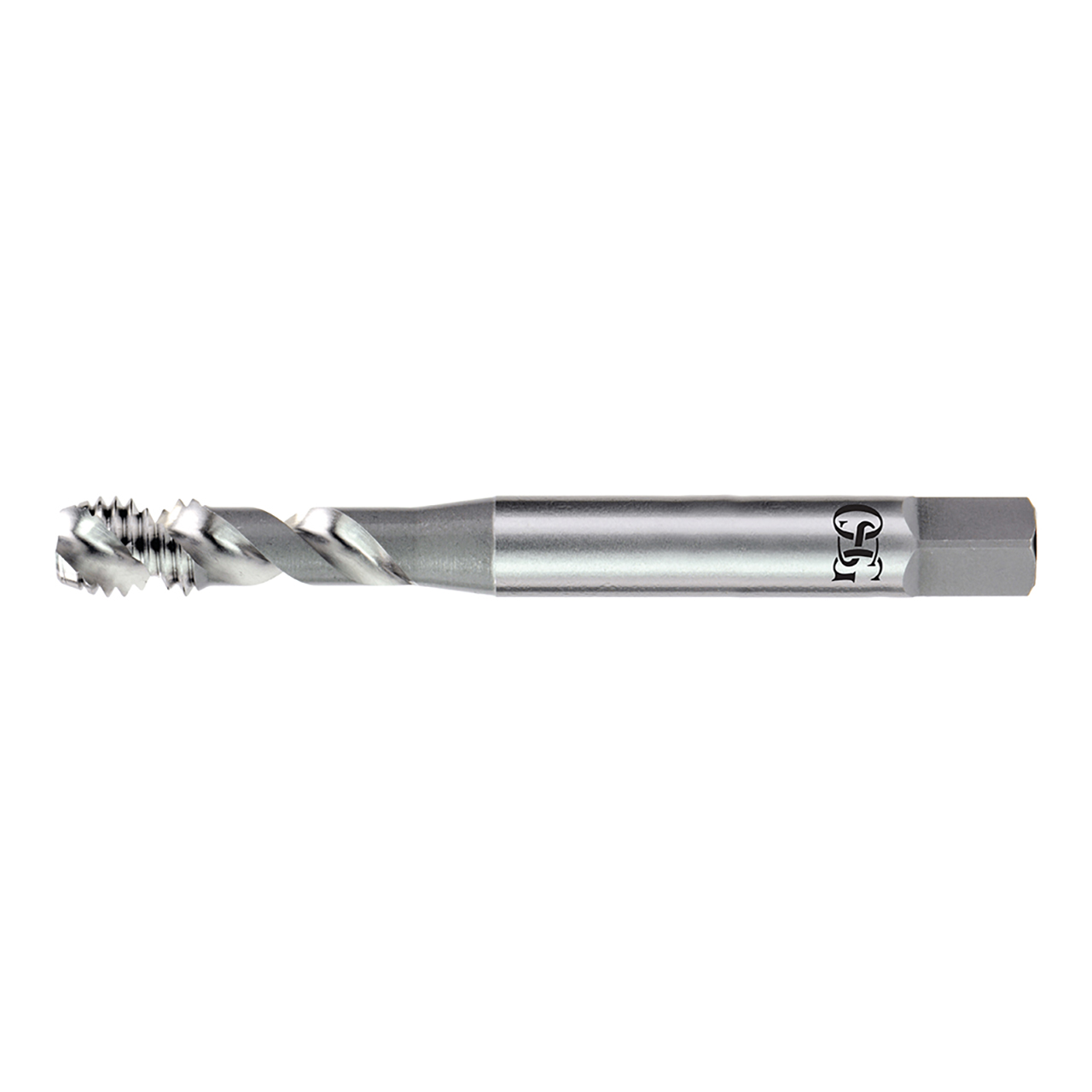

OSG 1311900903 | HY-PRO TAP MF M10.00x1.25mm Thread Size x 9.68mm Shank x 12.00mm Length x 10.00mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute Nitride Coated HSSE 13119 Spiral Flute Tap

OSG 1311900903 | HY-PRO TAP MF M10.00x1.25mm Thread Size x 9.68mm Shank x 12.00mm Length x 10.00mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute Nitride Coated HSSE 13119 Spiral Flute Tap

SKU: 17997625 Weight: 0.10 LBS Minimum Purchase: 1 unit
UPC:
$77.42 $47.22
(You save $30.20)
Shipping: Calculated at Checkout

About This Item

HY-PRO AL DIN is a premium spiral flute tap for Alloy and Cast Aluminum.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Nitride surface treatment: Extra surface hardness for longer life
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number1311900903
Chamfer Length (Decimal Inch)0.123"
Chamfer TypeModified Bottom (2.5P)
Cutting DirectionRight Hand
Helix Angle (Degree)50 Degree
Helix DirectionRight Hand
List NameAL-DIN EX-AL-SFT
Major Diameter (mm)10.00mm
Neck Length (mm)39.00mm
Number of Flutes3
Overall Length (mm)100.00mm
Pitch (mm)1.25mm
Shank Diameter (mm)9.68mm
Square Length (mm)11.11mm
Square Width (mm)7.26mm
MaterialHSSE
CoatingNitride
Tap Drill Size Maximum (mm)8.91mm
Tap Drill Size Minimum (mm)8.65mm
Thread Length (mm)12.00mm
Thread LimitD5
Thread SizeM10
Thread TypeMF
Series13119
Product TypeSpiral Flute Tap
