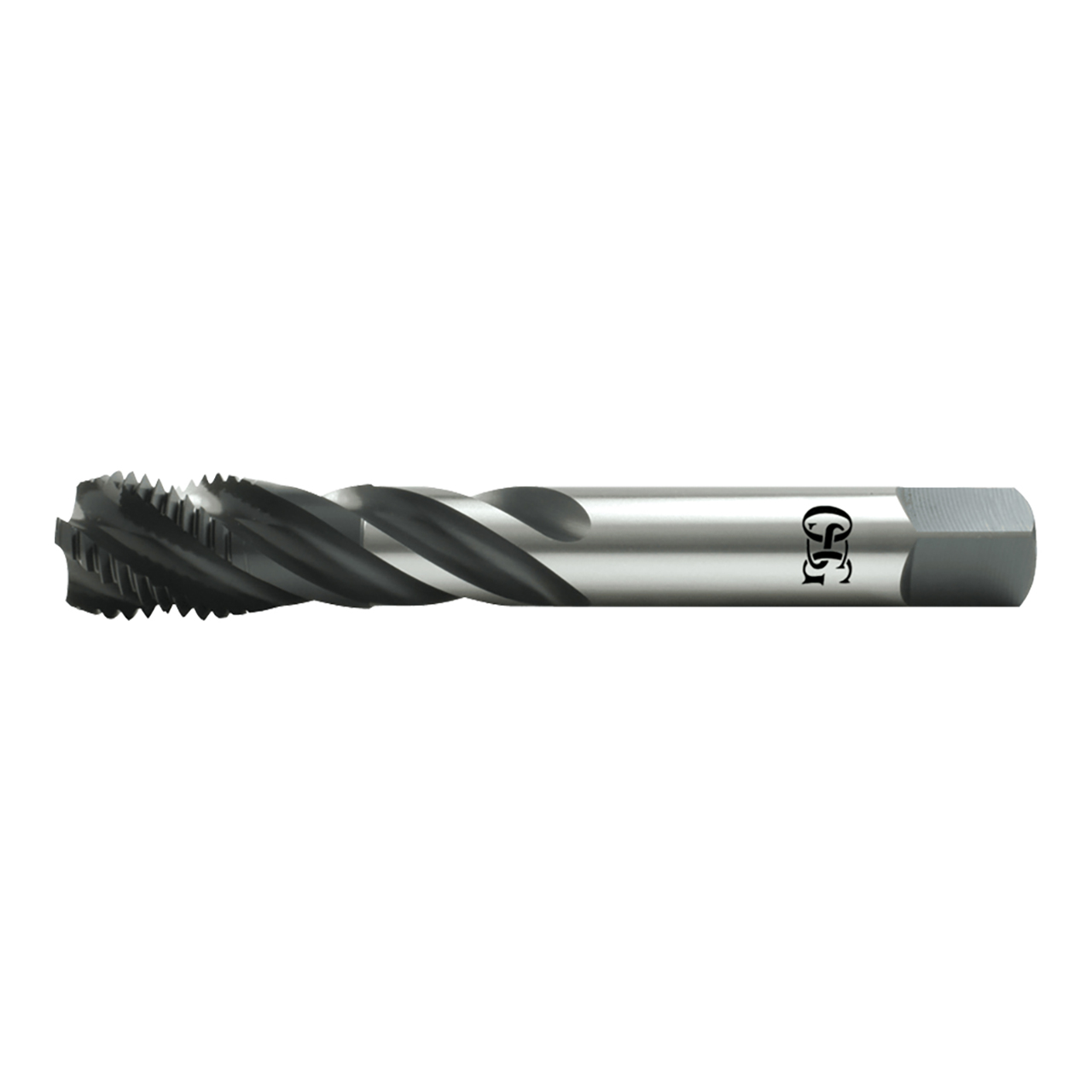

HY-PRO VXL-W-OIL Taps Vertical Tapping Solutions for the Wind Energy Industry.
| Manufacturer Part Number | 1312700201 |
| Chamfer Length (Decimal Inch) | 0.246" |
| Chamfer Type | Modified Bottom (2.5P) |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | VXL-W-OIL-SFT |
| Major Diameter (mm) | 20.00mm |
| Number of Flutes | 4 |
| Overall Length (mm) | 200.00mm |
| Pitch (mm) | 2.50mm |
| Shank Diameter (mm) | 16.56mm |
| Square Length (mm) | 17.46mm |
| Square Width (mm) | 12.42mm |
| Material | HSSE |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (mm) | 17.74mm |
| Tap Drill Size Minimum (mm) | 17.29mm |
| Thread Length (mm) | 19.00mm |
| Thread Limit | D8 |
| Thread Size | M20 |
| Thread Type | M |
| Series | 13127 |
| Product Type | Spiral Flute Tap |
