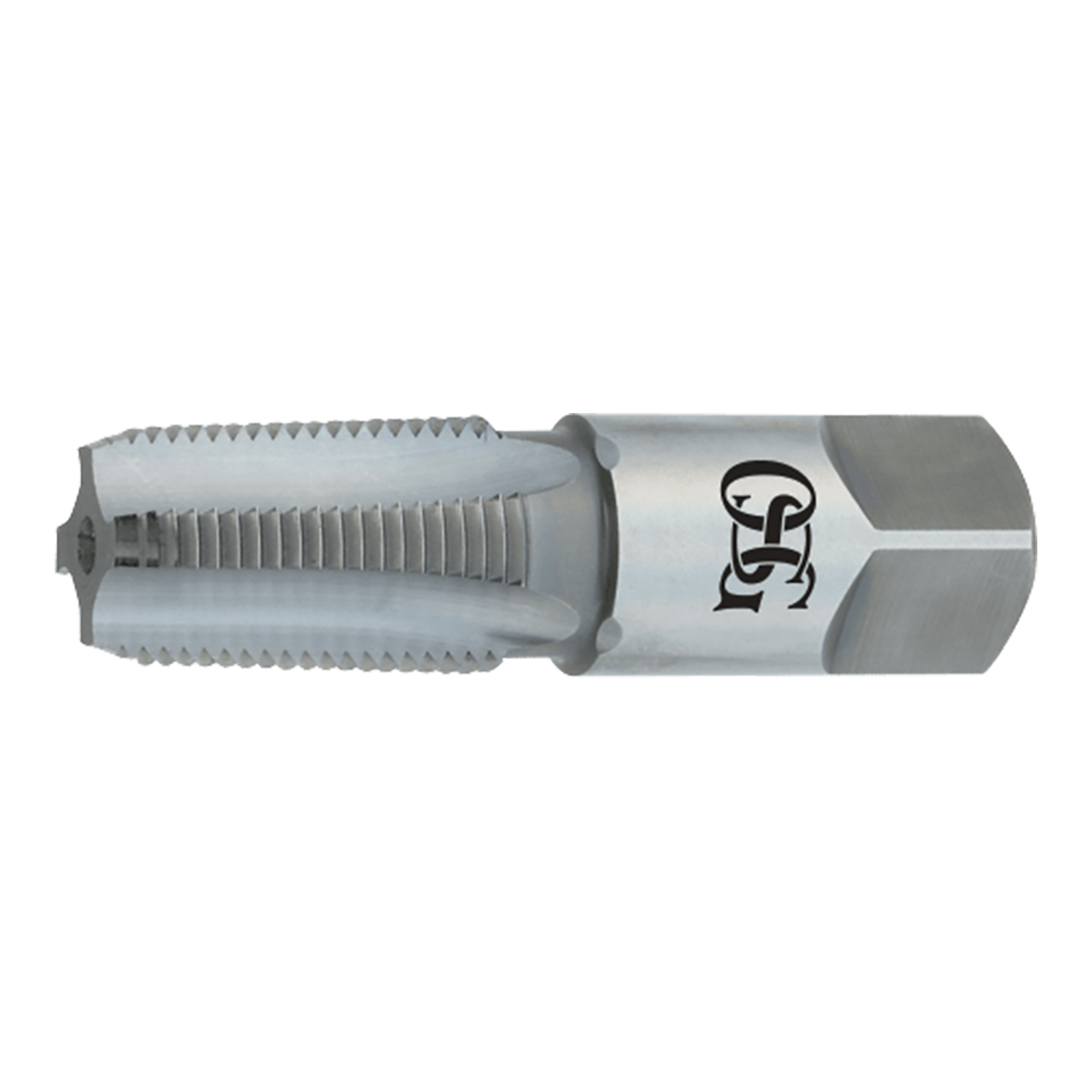

OSG 1312808 | | NPTF 1/4" - 18 Thread Size x 0.563" Shank x 1.062" Length x 2.437" OAL 4 Flute TiCN Coated HSS 118 Standard Pipe Tap

OSG 1312808 | | NPTF 1/4" - 18 Thread Size x 0.563" Shank x 1.062" Length x 2.437" OAL 4 Flute TiCN Coated HSS 118 Standard Pipe Tap

SKU: 17997686 Weight: 0.14 LBS Minimum Purchase: 1 unit
UPC:
$85.07 $38.28
(You save $46.79)
Shipping: Calculated at Checkout

About This Item

General Purpose taper pipe tap designed for Aluminum that provides exceptional value.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Bright or Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiN, TiCN coating: Improves wear resistance for extended tap life
  • NPTF: For standard or dry seal tapered pipe thread applications

Product Specifications
Manufacturer Part Number1312808
Major Diameter (Decimal Inch)0.250"
Neck Length (Decimal Inch)1.279"
Number of Flutes4
Overall Length (Decimal Inch)2.437"
Shank Diameter (Decimal Inch)0.563"
Square Length (Decimal Inch)0.438"
Square Width (Decimal Inch)0.421"
Minimum Tap Drill Size (Decimal Inch)0.438"
Thread Length (Decimal Inch)1.062"
Thread Size (Inch)1/4"
CoatingTiCN
MaterialHSS
Series118 Series
Product TypeStandard Pipe Tap
