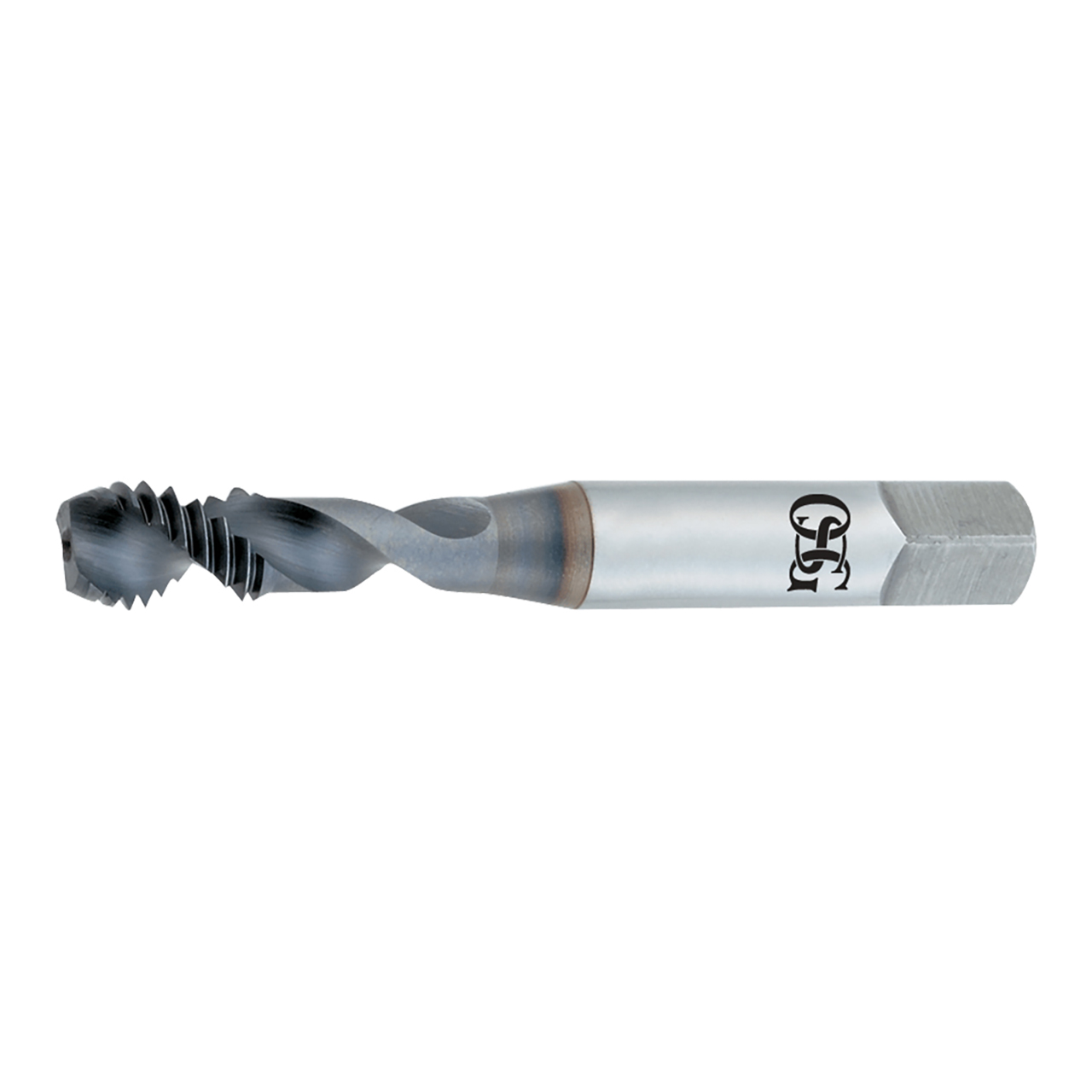

OSG 1315800208 | HY-PRO TAP M M4.00x0.70mm Thread Size x 4.27mm Shank x 5.60mm Length x 54.00mm OAL Modified Bottom (2.5P) Chamfer 2 Flute V Coated HSSE 13158 Spiral Flute Tap

OSG 1315800208 | HY-PRO TAP M M4.00x0.70mm Thread Size x 4.27mm Shank x 5.60mm Length x 54.00mm OAL Modified Bottom (2.5P) Chamfer 2 Flute V Coated HSSE 13158 Spiral Flute Tap

SKU: 17997713 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$45.72 $27.89
(You save $17.83)
Shipping: Calculated at Checkout

About This Item

HY-PRO SYNCHRO AL is a premium spiral flute tap for synchronized tapping Alloy and Cast Aluminum.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • TiCN coating: TiN improves wear resistance for extended tap life
  • Extra Thread Relief: Eliiminates friction to enable High Speed tapping

Product Specifications
Manufacturer Part Number1315800208
Chamfer Length (Decimal Inch)0.069"
Major Diameter (mm)4.00mm
Neck Length (mm)19.10mm
Number of Flutes2
Overall Length (mm)54.00mm
Pitch (mm)0.70mm
Shank Diameter (mm)4.27mm
Square Length (mm)6.35mm
Square Width (mm)3.33mm
Maximum Tap Drill Size (mm)3.42mm
Minimum Tap Drill Size (mm)3.24mm
Thread Length (mm)5.60mm
Thread SizeM4
CoatingV
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series13158 Series
Product TypeSpiral Flute Tap
