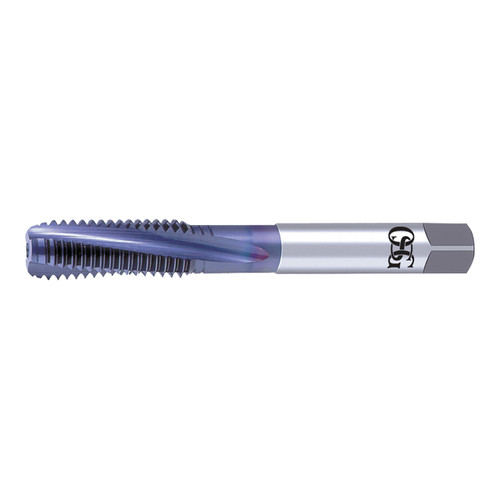

OSG 1316110501 | EXOTAP M M8.00x1.25mm Thread Size x 8.08mm Shank x 1.00mm Length x 69.10mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute Steam Oxide Coated VC-10 345NI Spiral Flute Tap

OSG 1316110501 | EXOTAP M M8.00x1.25mm Thread Size x 8.08mm Shank x 1.00mm Length x 69.10mm OAL Modified Bottom (2.5P) Chamfer D5 3 Flute Steam Oxide Coated VC-10 345NI Spiral Flute Tap

SKU: 17997742 Weight: 0.04 LBS Minimum Purchase: 1 unit
UPC:
$71.98 $66.95
(You save $5.03)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 NI is spiral flute series is the premium solution for Nickel alloys and Heat Resistant Super Alloys.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For blind hole applications
  • OSG V-Coating: Increased hardness, lubricity & wear resistance
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number1316110501
Chamfer Length (Decimal Inch)0.123"
Major Diameter (mm)8.00mm
Neck Length (mm)28.60mm
Number of Flutes3
Overall Length (mm)69.10mm
Pitch (mm)1.25mm
Shank Diameter (mm)8.08mm
Square Length (mm)9.53mm
Square Width (mm)6.05mm
Maximum Tap Drill Size (mm)6.91mm
Minimum Tap Drill Size (mm)6.65mm
Thread Length (mm)10.00mm
Thread SizeM8
CoatingSteam Oxide
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)10 Degree
Series345NI Series
Product TypeSpiral Flute Tap
