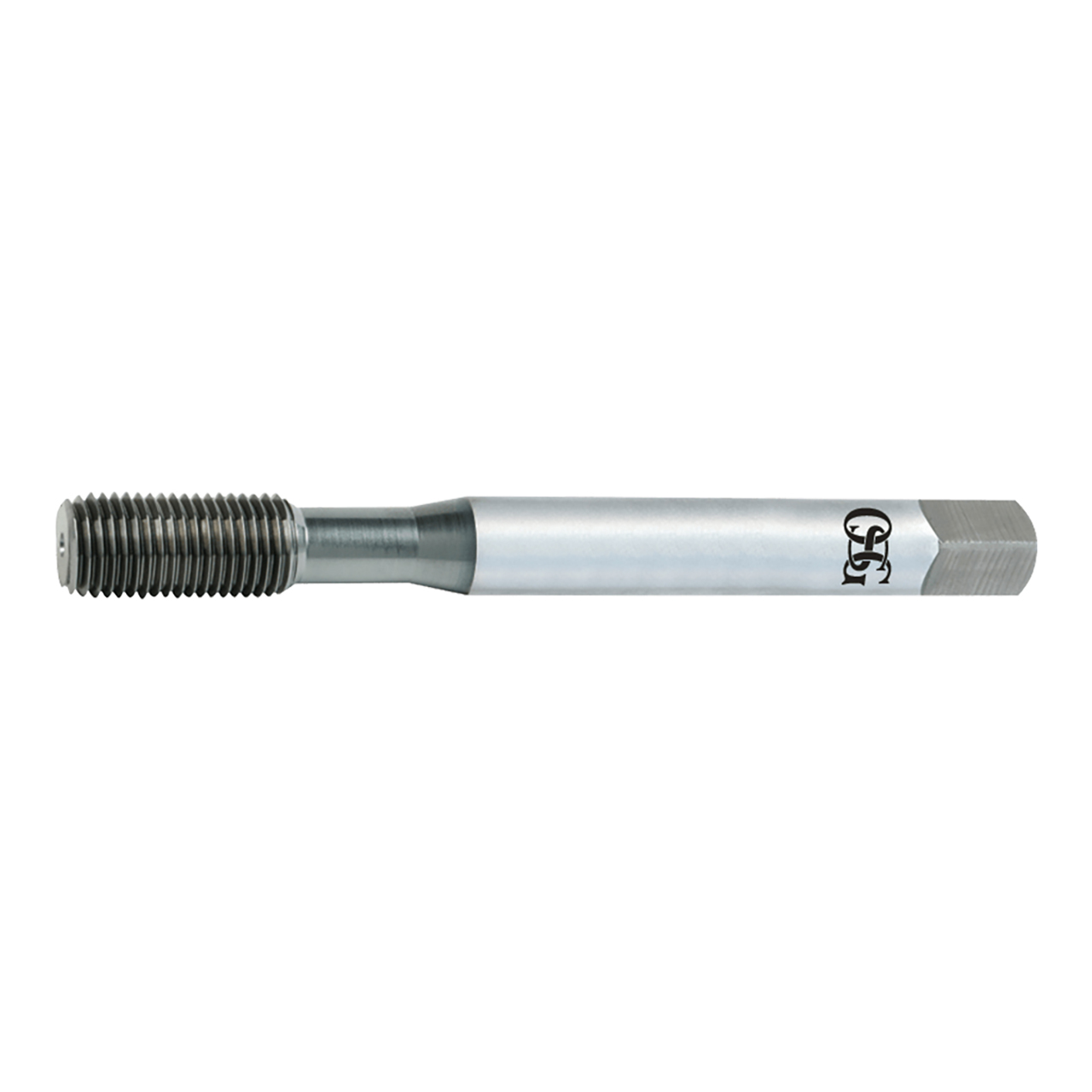

OSG 1400100601 | HY-PRO #0- 80 Thread Size x 0.141" Shank x 0.317" Thread Length x 1.691" OAL UNF H6 Modified Bottom (2.5P) Chamfer Type Right Hand Steam Oxide Coated HSS-CO 14001 Thread Forming Tap

$27.42 $16.73
(You save $10.69)
Brand:
OSG
Material:
HSS-CO
Finish/Coating:
Steam Oxide
Thread Size:
#0-80
interval quantity:
1
SKU:
17997809
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1400100601 | HY-PRO #0- 80 Thread Size x 0.141" Shank x 0.317" Thread Length x 1.691" OAL UNF H6 Modified Bottom (2.5P) Chamfer Type Right Hand Steam Oxide Coated HSS-CO 14001 Thread Forming Tap

HY-PRO NRT Taps Performance Form Taps for Materials < 32Rc


Product Specifications
Manufacturer Part Number1400100601
Chamfer Length (Decimal Inch)0.031"
Major Diameter (Decimal Inch)0.060"
Neck Length (Decimal Inch)0.357"
Overall Length (Decimal Inch)1.691"
Shank Diameter (Decimal Inch)0.141"
Square Length (Decimal Inch)0.188"
Square Width (Decimal Inch)0.110"
Maximum Tap Drill Size (Decimal Inch)0.055"
Minimum Tap Drill Size (Decimal Inch)0.054"
Thread Length (Decimal Inch)0.317"
CoatingSteam Oxide
MaterialHSS-CO
Series14001 Series
Thread Size1.625"
Product TypeThread Forming Tap
