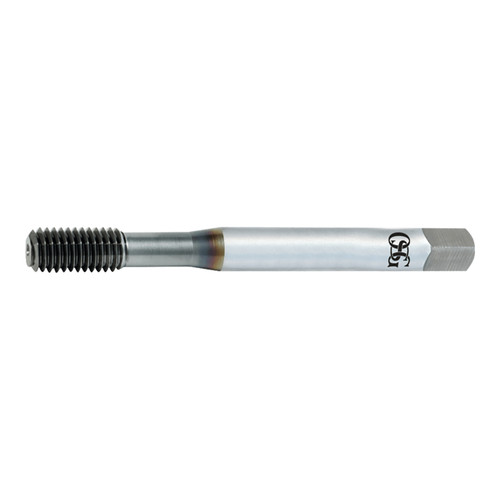

HY-PRO NRT Taps Forming Tap, For a Wide Range of Materials
Product Specifications
| Manufacturer Part Number | 1410100800 |
| Chamfer Length (Decimal Inch) | 0.027" |
| Major Diameter (mm) | 2.50mm |
| Neck Length (mm) | 13.80mm |
| Overall Length (mm) | 46.00mm |
| Pitch (mm) | 0.45mm |
| Shank Diameter (mm) | 3.58mm |
| Square Length (mm) | 4.76mm |
| Square Width (mm) | 2.79mm |
| Maximum Tap Drill Size (mm) | 2.32mm |
| Minimum Tap Drill Size (mm) | 2.27mm |
| Thread Length (mm) | 12.80mm |
| Thread Size | M2.5 |
| Coating | Bright |
| Material | HSS-CO |
| Series | 14101 Series |
| Product Type | Thread Forming Tap |
