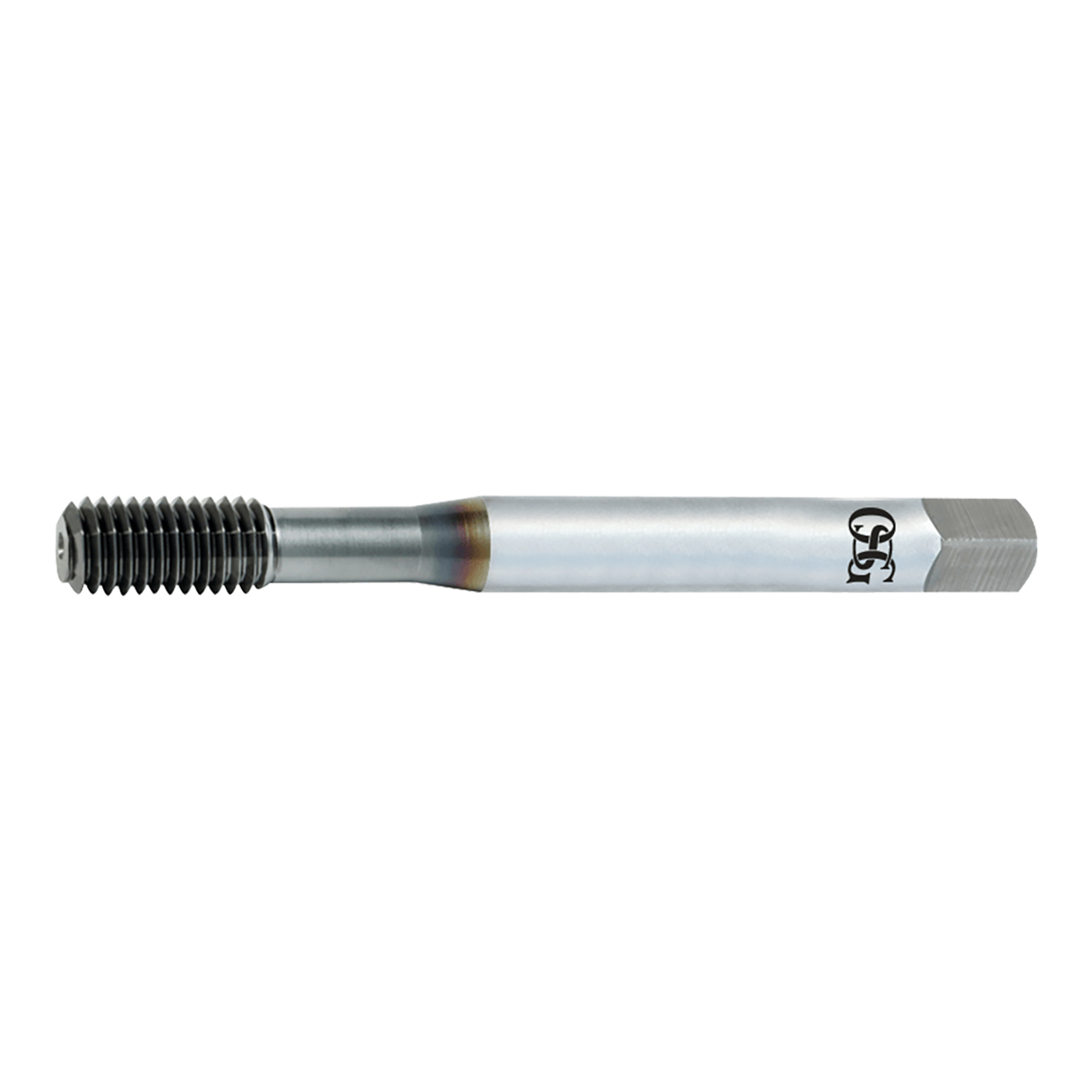

OSG 1410101008 | HY-PRO TAP M M2.50x0.45mm Thread Size x 3.58mm Shank x 12.80mm Length x 46.00mm OAL Modified Bottom (2.5P) Chamfer D3 TiCN Coated HSS-CO 14101 Thread Forming Tap

OSG 1410101008 | HY-PRO TAP M M2.50x0.45mm Thread Size x 3.58mm Shank x 12.80mm Length x 46.00mm OAL Modified Bottom (2.5P) Chamfer D3 TiCN Coated HSS-CO 14101 Thread Forming Tap

SKU: 18000239 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$39.38 $24.02
(You save $15.36)
Shipping: Calculated at Checkout

About This Item

HY-PRO NRT Taps Forming Tap, For a Wide Range of Materials


Product Specifications
Manufacturer Part Number1410101008
Chamfer Length (Decimal Inch)0.044"
Major Diameter (mm)2.50mm
Neck Length (mm)13.80mm
Overall Length (mm)46.00mm
Pitch (mm)0.45mm
Shank Diameter (mm)3.58mm
Square Length (mm)4.76mm
Square Width (mm)2.79mm
Maximum Tap Drill Size (mm)2.32mm
Minimum Tap Drill Size (mm)2.27mm
Thread Length (mm)12.80mm
Thread SizeM2.5
CoatingTiCN
MaterialHSS-CO
Series14101 Series
Product TypeThread Forming Tap
