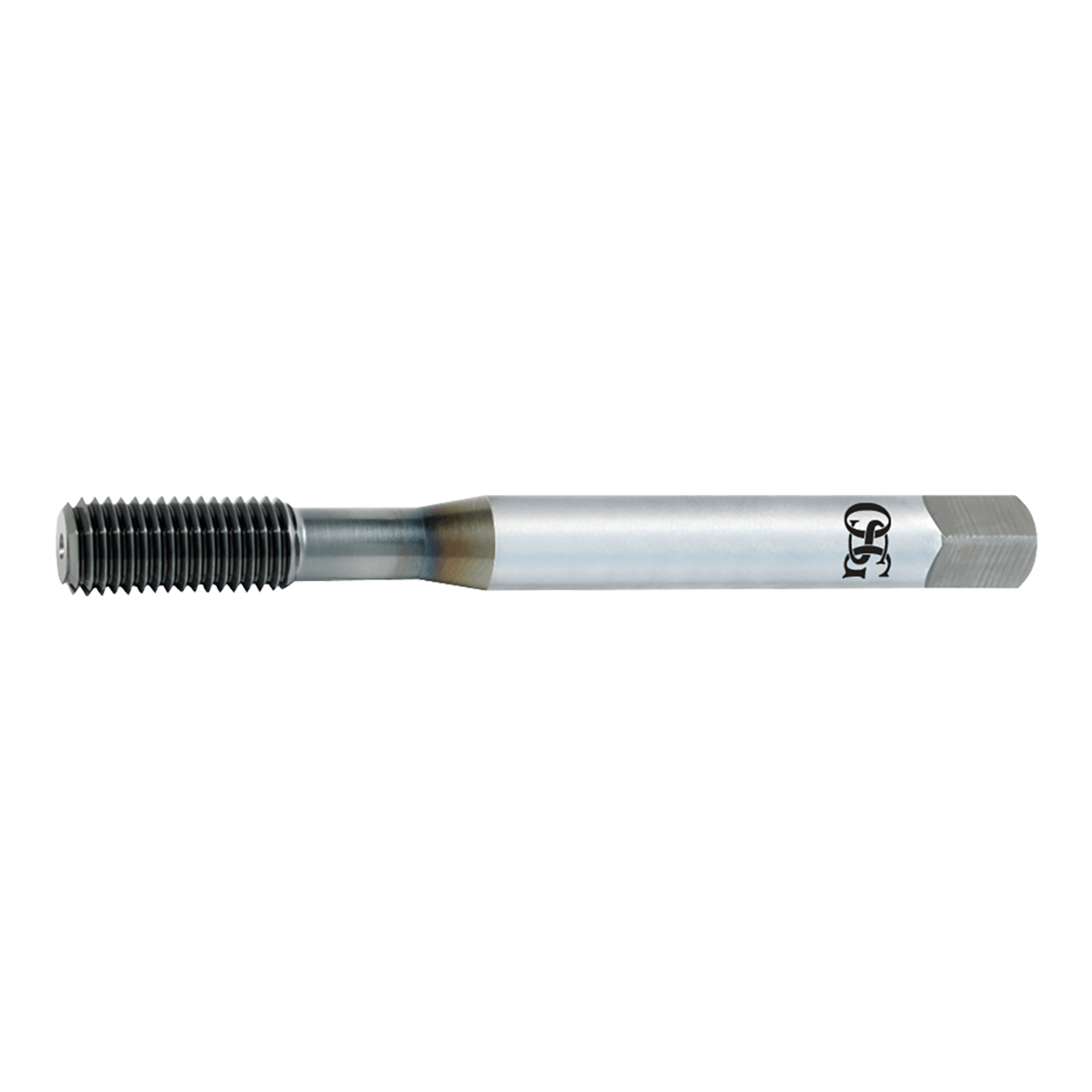

EXOTAP NRT Taps Performance Form Taps for Materials < 32Rc.
| Manufacturer Part Number | 1415000208 |
| Chamfer Length (Decimal Inch) | 0.034" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| List Name | VP-NRT |
| Major Diameter (mm) | 1.70mm |
| Neck Length (mm) | 10.50mm |
| Overall Length (mm) | 42.90mm |
| Pitch (mm) | 0.35mm |
| Shank Diameter (mm) | 3.58mm |
| Square Length (mm) | 4.76mm |
| Square Width (mm) | 2.79mm |
| Material | VC-10 |
| Coating | V |
| Tap Drill Size Maximum (mm) | 1.56mm |
| Tap Drill Size Minimum (mm) | 1.52mm |
| Thread Length (mm) | 9.50mm |
| Thread Limit | D3 |
| Thread Size | M1.7 |
| Thread Type | M |
| Series | 14150 |
| Product Type | Thread Forming Tap |
