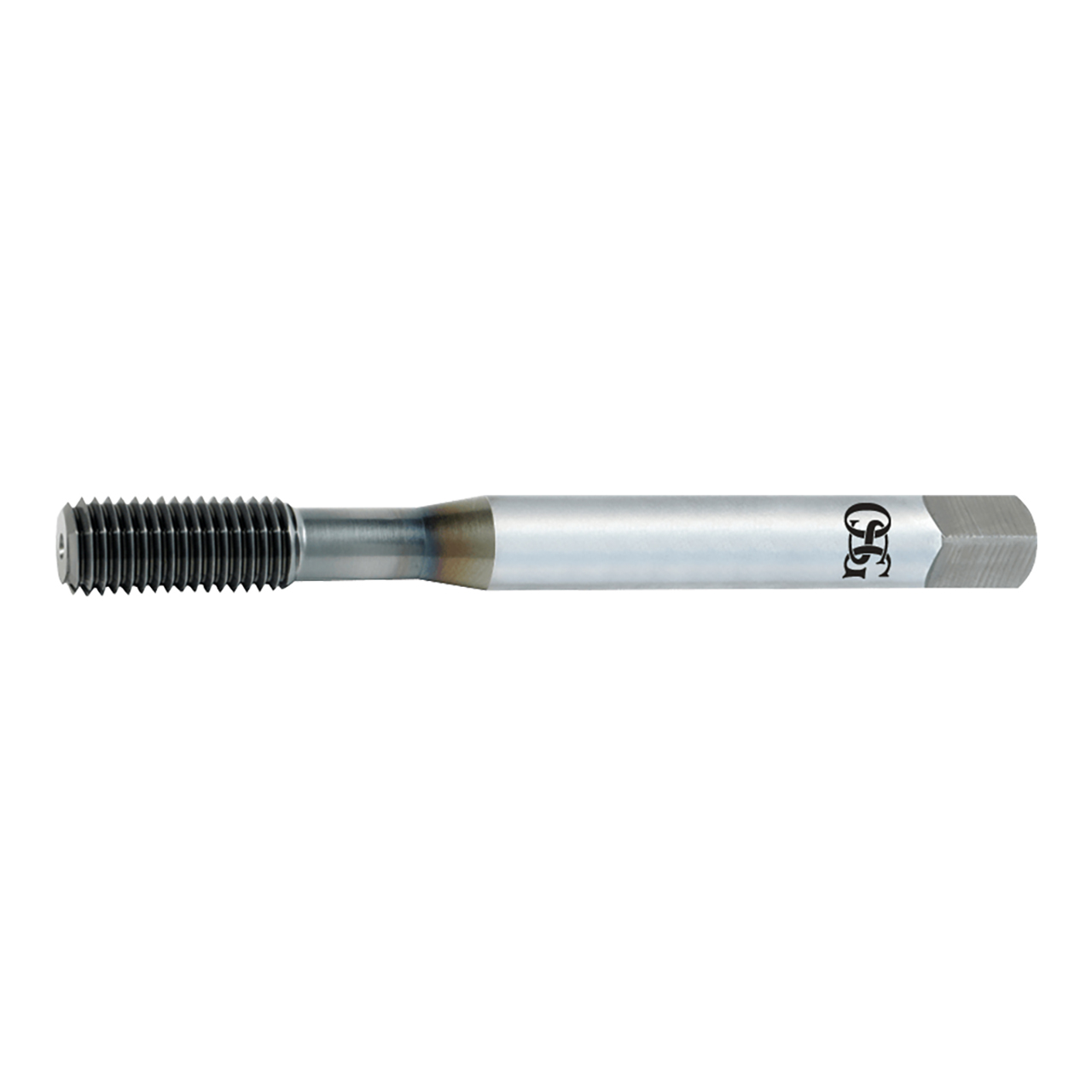

EXOTAP NRT Taps Performance Form Taps for Materials < 32Rc.
| Manufacturer Part Number | 1415002208 |
| Chamfer Length (Decimal Inch) | 0.047" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| List Name | VP-NRT |
| Major Diameter (mm) | 5.00mm |
| Neck Length (mm) | 22.20mm |
| Overall Length (mm) | 60.30mm |
| Pitch (mm) | 0.80mm |
| Shank Diameter (mm) | 4.93mm |
| Square Length (mm) | 6.35mm |
| Square Width (mm) | 3.86mm |
| Material | VC-10 |
| Coating | V |
| Tap Drill Size Maximum (mm) | 4.67mm |
| Tap Drill Size Minimum (mm) | 4.59mm |
| Thread Length (mm) | 9.60mm |
| Thread Limit | D4 |
| Thread Size | M5 |
| Thread Type | M |
| Series | 14150 |
| Product Type | Thread Forming Tap |
