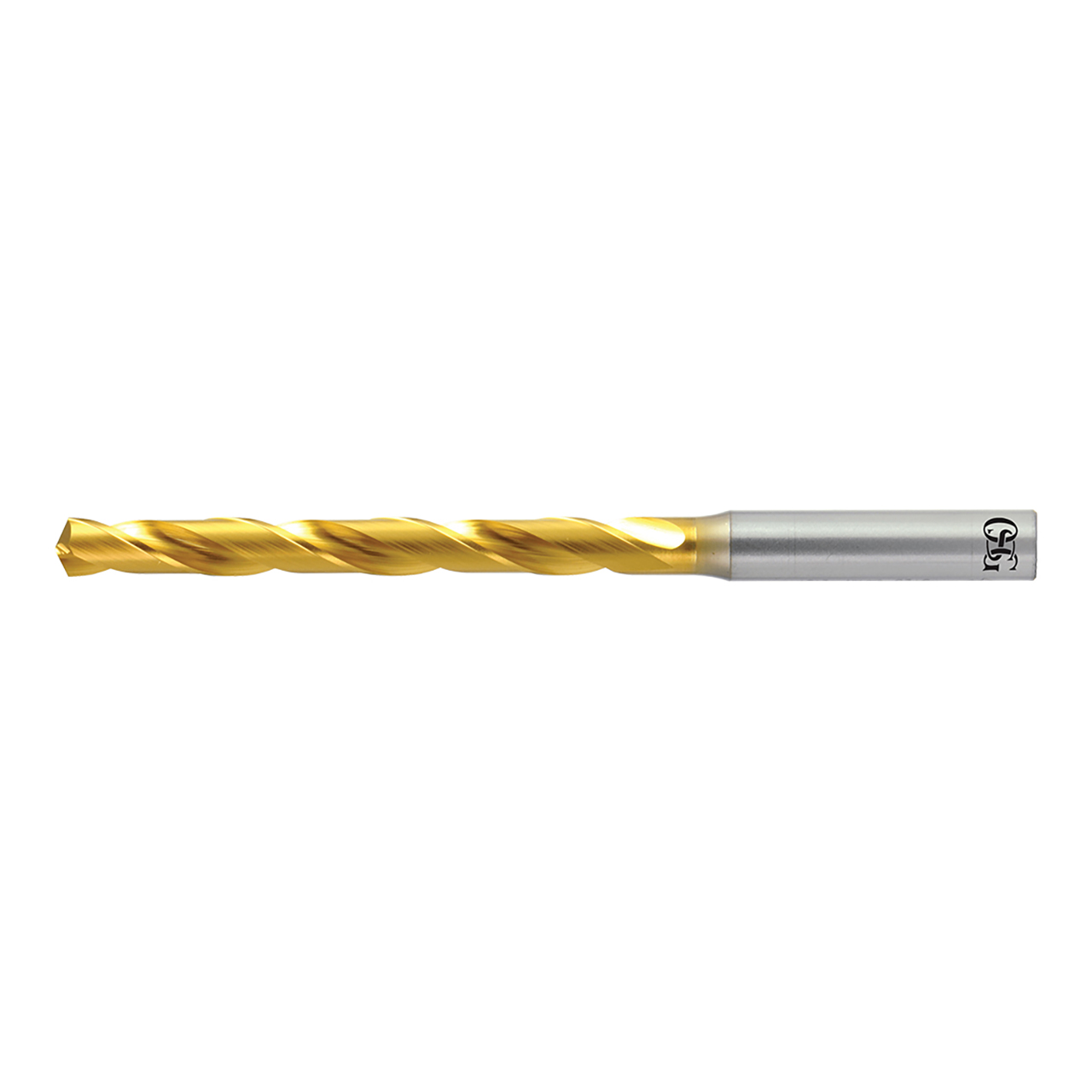

OSG 15180005 | EX-GOLD #15 Drill Size x 0.188" Shank x 55.00mm Flute Length x 92.00mm OAL x 130 Degree Point Angle 2 Flute TiN Coated HSS-CO 1500 Jobber Length Drill Bit

SKU: 10290756 Weight: 0.03 LBS Minimum Purchase: 1 unit
UPC:
$35.27 $33.50
(You save $1.77)
Shipping: Calculated at Checkout

About This Item

The Ex-Gold drill line is famous worldwide for its incredible performace in nearly all material families. From cast iron and hardened alloy steel to manual machines or CNC controls, this drill has the toughness and durability to perform. Available in stub and jobber lengths in a complete stocked size offering.

Features & Benefits:

  • Radial Point Thinning: No center drills neeeded. Achieves high accuracy while reducing drill thrust force for longer tool life.
  • HSS-Cobalt Substrate: Added hardness versus ordinary HSS, yet exceptional toughness provides exceptional versatility in any application.
  • Titanium Nitride Coating: Increased hardness and lubricitiy inceases wear resistance thereby extending tool life.

Product Specifications
Manufacturer Part Number15180005
Cutting Diameter Tolerance (Decimal Inch)+0 / -0.0007"
Cutting Diameter Tolerance (mm)+0 / -0.018mm
Cutting Diameter Tolerance Specificationh8
Cutting DirectionRight Hand
Diameter (Decimal Inch)0.180"
Diameter (mm)4.57mm
Diameter (Wire)15
Flute Length (mm)55.00mm
Helix Angle (Degree)30 Degree
Helix DirectionRight Hand
List NameEX-GDR
Number of Flutes2
Overall Length (mm)92.00mm
Point Angle (Degree)130 Degree
Shank Diameter (Decimal Inch)0.188"
MaterialHSS-CO
CoatingTiN
Series1500
Product TypeJobber Length Drill Bit
