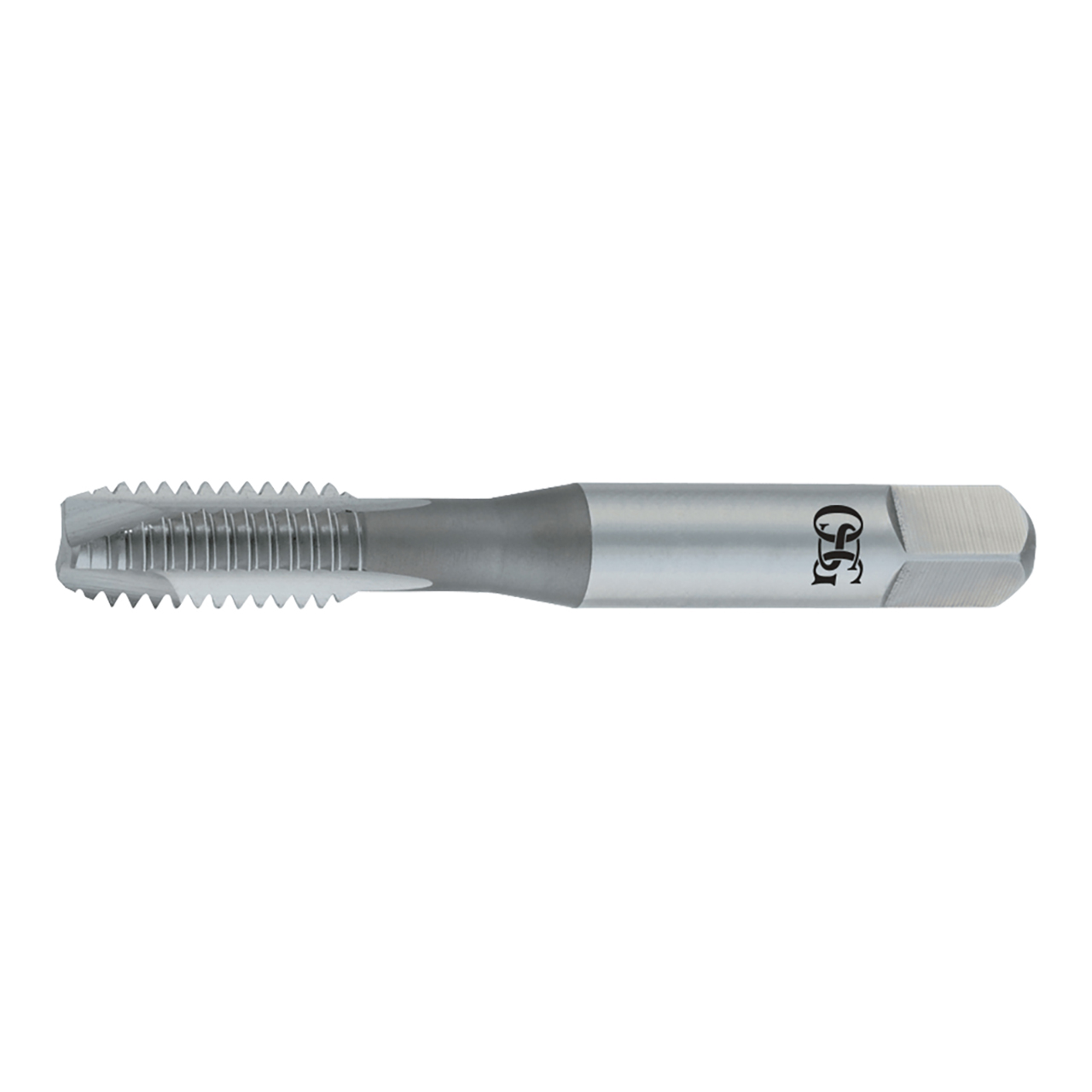

General Purpose spiral point tap series that provides exceptional value for all general threading applications.
Features & Benefits:
| Manufacturer Part Number | 1593400 |
| Chamfer Length (Decimal Inch) | 0.188" |
| Chamfer Type | Plug (4.5P) |
| Class of Fit | 2B +0.005" |
| Cutting Direction | Right Hand |
| List Name | GENERAL PURPOSE-POT +.005 OVERSIZE |
| Major Diameter (Decimal Inch) | 0.190" |
| Neck Length (Decimal Inch) | 0.874" |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 2.375" |
| Shank Diameter (Decimal Inch) | 0.194" |
| Square Length (Decimal Inch) | 0.250" |
| Square Width (Decimal Inch) | 0.152" |
| Material | HSS |
| Coating | Bright |
| Tap Drill Size Maximum (Decimal Inch) | 0.156" |
| Tap Drill Size Minimum (Decimal Inch) | 0.145" |
| Thread Length (Decimal Inch) | 0.504" |
| Thread Size | No. 10 |
| Thread Size (Number) | #10 |
| Thread Type | UNC |
| Thread Per Inch (TPI) | 24 TPI |
| Series | 105H |
| Product Type | Spiral Point Tap |
