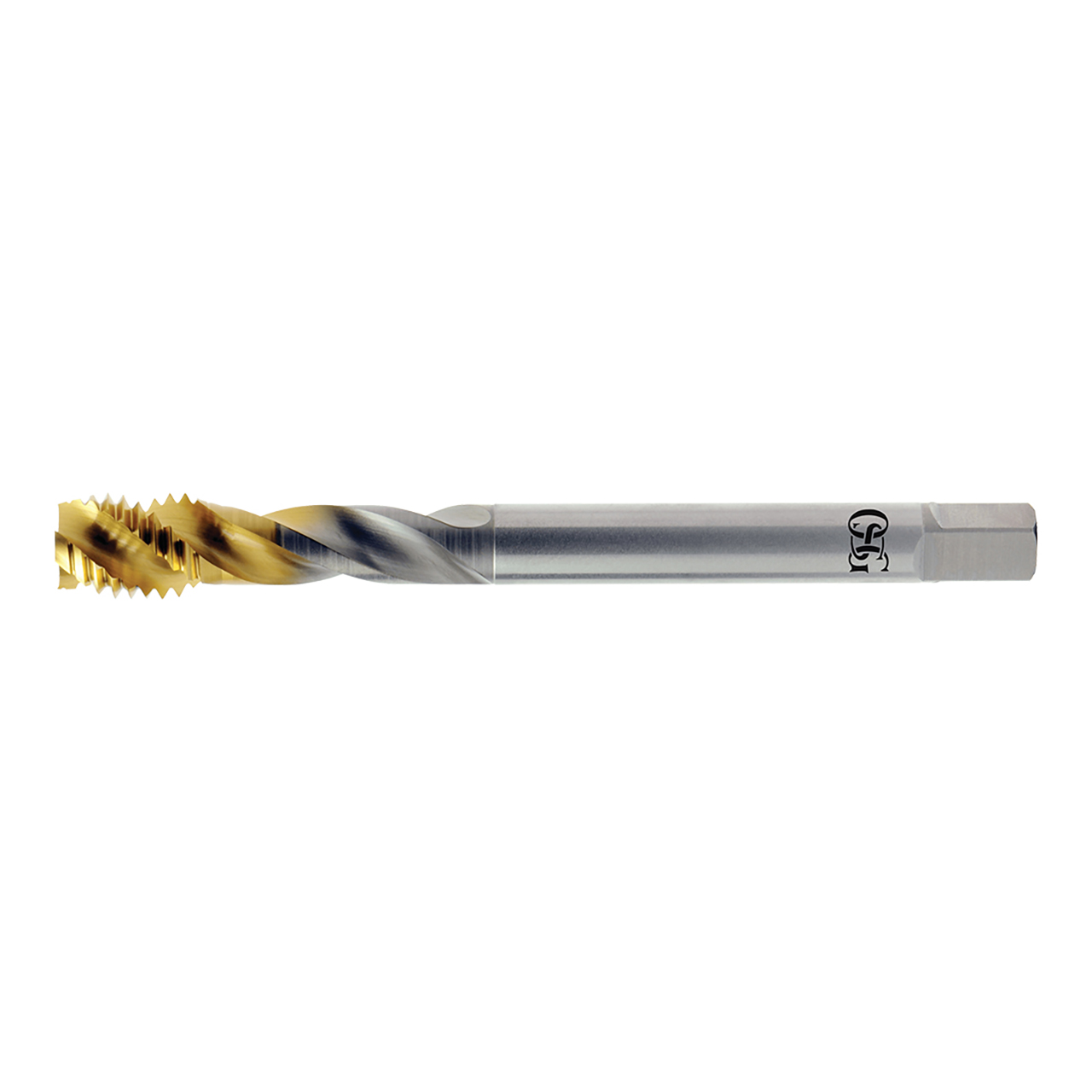

OSG 1645005402 | EXO #5- 40 Thread Size x 0.141" Shank x 0.201" Thread Length x 2.205" OAL UNC H2 Modified Bottom (2.5P) Chamfer Type 2 Flute Right Hand TiN Coated HSSE 16450 Spiral Flute Tap

$60.89 $40.80
(You save $20.09)
Brand:
OSG
Overall Length (Decimal Inch):
2.2050"
Number of Flutes:
2
Material:
HSSE
Finish/Coating:
TiN
Flute Direction:
Right Hand
interval quantity:
1
SKU:
18001440
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1645005402 | EXO #5- 40 Thread Size x 0.141" Shank x 0.201" Thread Length x 2.205" OAL UNC H2 Modified Bottom (2.5P) Chamfer Type 2 Flute Right Hand TiN Coated HSSE 16450 Spiral Flute Tap

Features & Benefits:

  • Variable lead flute: Trouble-free chip separation
  • Advanced chip control: Long tool life
  • Vanadium HSS with TiN coating: Capable of high speed tapping in synchronized spindles

Product Specifications
Manufacturer Part Number1645005402
Chamfer Length (Decimal Inch)0.063"
Major Diameter (Decimal Inch)0.125"
Neck Length (Decimal Inch)0.790"
Number of Flutes2
Overall Length (Decimal Inch)2.205"
Shank Diameter (Decimal Inch)0.141"
Square Length (Decimal Inch)0.188"
Square Width (Decimal Inch)0.110"
Maximum Tap Drill Size (Decimal Inch)0.106"
Minimum Tap Drill Size (Decimal Inch)0.098"
Thread Length (Decimal Inch)0.201"
Thread Size NumberNo. 5
CoatingTiN
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series16450 Series
Product TypeSpiral Flute Tap
