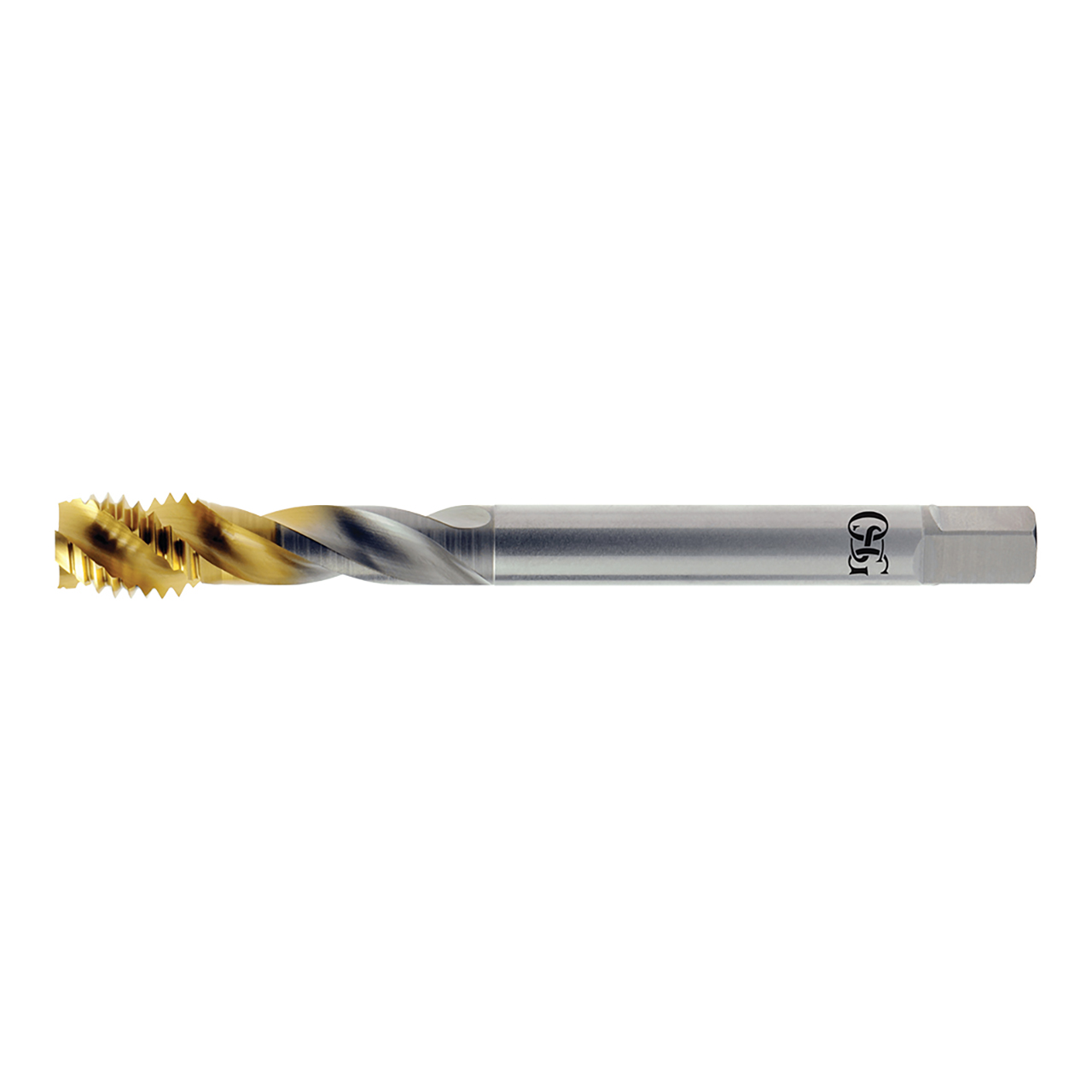

The EXOPRO-CC-SUS is one of OSGโs latest premium tap series made from vanadium high speed steel. It features a variable lead flute design with advanced chip control (CC) to enable stable chip evacuation. With its state-of-the-art geometry, this series is able to achieve great consistency, reliability and long tool life even with water soluble coolant.
Features & Benefits:
| Manufacturer Part Number | 1645525453 |
| Chamfer Length (Decimal Inch) | 0.044" |
| Chamfer Type | Modified Bottom (2.5P) |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | CC-SUS-SFT |
| Major Diameter (mm) | 2.50mm |
| Neck Length (mm) | 14.10mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 50.00mm |
| Pitch (mm) | 0.45mm |
| Shank Diameter (mm) | 3.58mm |
| Square Length (mm) | 4.76mm |
| Square Width (mm) | 2.79mm |
| Material | HSSE |
| Coating | TiN |
| Tap Drill Size Maximum (mm) | 2.14mm |
| Tap Drill Size Minimum (mm) | 2.01mm |
| Thread Length (mm) | 3.70mm |
| Thread Limit | D3 |
| Thread Size | M2.5 |
| Thread Type | M |
| Series | 16455 |
| Product Type | Spiral Flute Tap |
