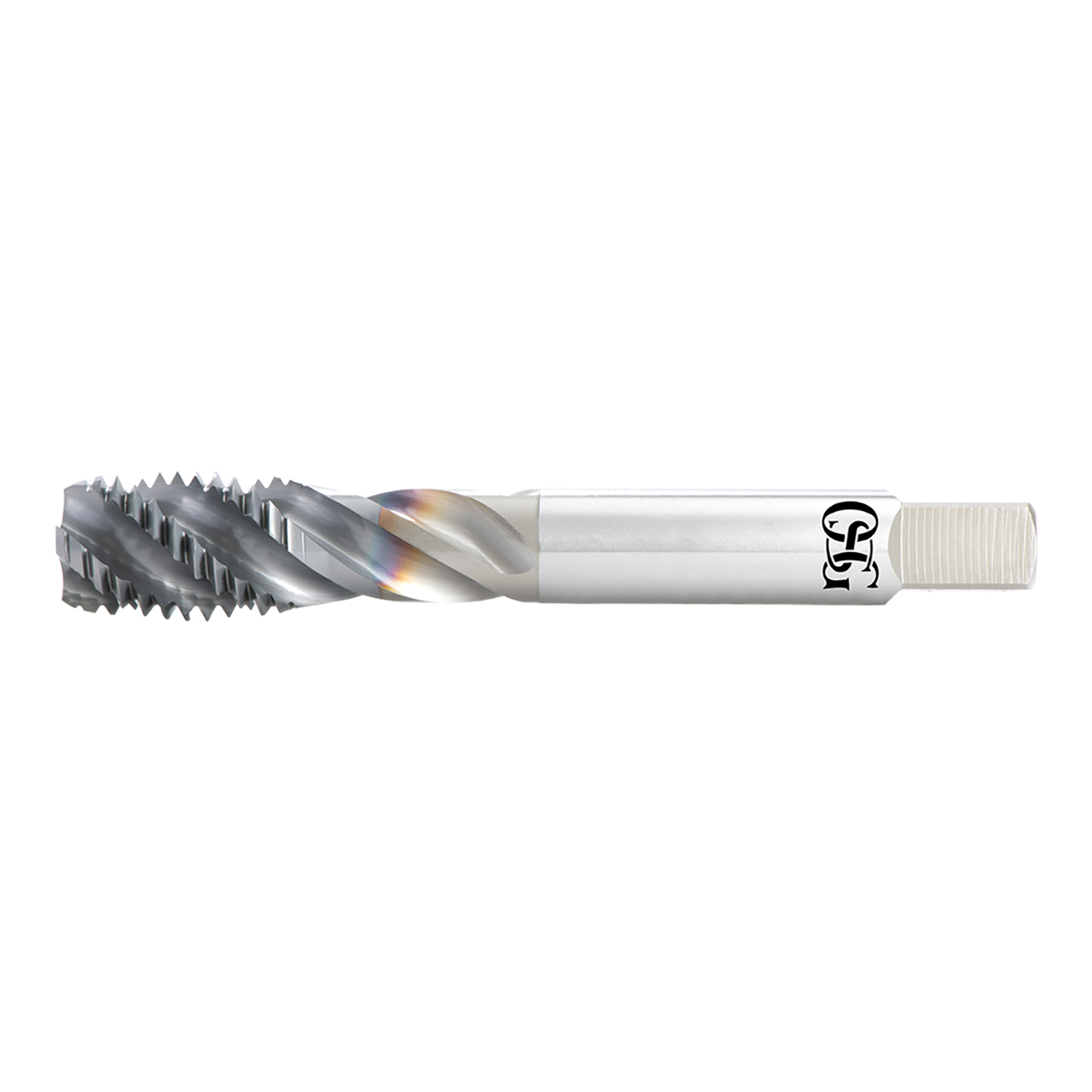

OSG 1654002308 | A BRAND M18 x 2.50mm Thread Size x 13.77mm Shank x 25.00mm Thread Length M D7 Modified Bottom (2.5P) Chamfer Type 4 Flute Right Hand V Coated VC-10 16540 Spiral Flute Tap

$230.18 $214.07
(You save $16.11)
Brand:
OSG
Overall Length (mm):
125.00mm
Number of Flutes:
4
Material:
VC-10
Finish/Coating:
V
Flute Direction:
Right Hand
interval quantity:
1
SKU:
18001939
UPC:
Weight:
0.29 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1654002308 | A BRAND M18 x 2.50mm Thread Size x 13.77mm Shank x 25.00mm Thread Length M D7 Modified Bottom (2.5P) Chamfer Type 4 Flute Right Hand V Coated VC-10 16540 Spiral Flute Tap

Features & Benefits:

  • Sharp Cutting Edge: Stabilizes Chip Shape
  • Variable Helix Flute: Accelerates chip evacuation
  • OSG's Proprietary V Coating: Long tool life
  • Powder Metallurgy HSS: High Wear Resistance

Product Specifications
Manufacturer Part Number1654002308
Chamfer Length (Decimal Inch)0.246"
Major Diameter (mm)18.00mm
Neck Length (mm)55.00mm
Number of Flutes4
Overall Length (mm)125.00mm
Pitch (mm)2.50mm
Shank Diameter (mm)13.77mm
Square Length (mm)15.88mm
Square Width (mm)10.31mm
Maximum Tap Drill Size (mm)15.74mm
Minimum Tap Drill Size (mm)15.29mm
Thread Length (mm)25.00mm
Thread SizeM18
CoatingV
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series16540 Series
Product TypeSpiral Flute Tap
