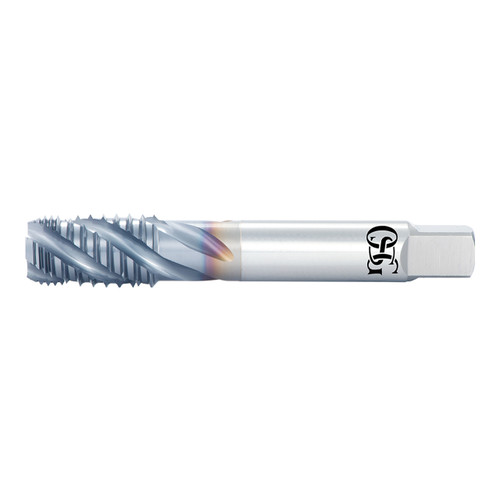

The A Brand A-Pipe Tap is OSG's newest addition to the A Brand line up. With an expansive size offering, the new A Brand A-Pipe Tap has enhanced cutting geometry with premium V Coating for extended tool life that performs exceptionally in a wide range of materials.
Features & Benefits:
| Manufacturer Part Number | 1657105008 |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 40 Degree |
| Helix Direction | Right Hand |
| Interrupted Thread | Yes |
| List Name | A-NPTF |
| Major Diameter (Decimal Inch) | 0.375" |
| Neck Length (Decimal Inch) | 1.969" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Diameter (Decimal Inch) | 0.700" |
| Square Length (Decimal Inch) | 0.500" |
| Square Width (Decimal Inch) | 0.531" |
| Material | HSSE |
| Coating | V |
| Thread Length (Decimal Inch) | 1.063" |
| Thread Size (Inch) | 3/8" |
| Thread Type | NPTF |
| Thread Per Inch (TPI) | 18 TPI |
| Series | 16571 |
| Product Type | Spiral Flute Pipe Tap |
