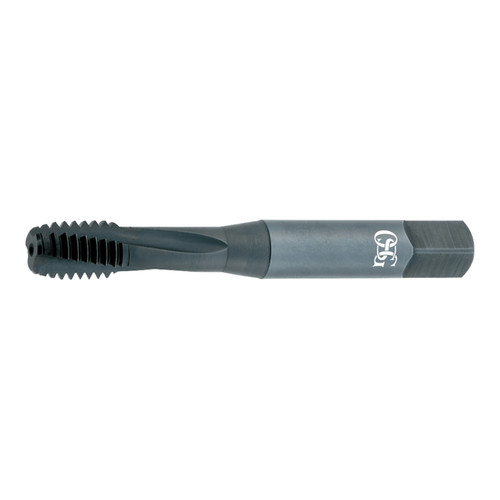

OSG 1716501 | EXOTAP UNF STI 1/4" - 28 Thread Size x 0.318" Shank x 0.500" Length x 2.720" OAL Modified Bottom (2.5P) Chamfer H2 3 Flute Steam Oxide Coated VC-10 315 Spiral Flute STI Tap

OSG 1716501 | EXOTAP UNF STI 1/4" - 28 Thread Size x 0.318" Shank x 0.500" Length x 2.720" OAL Modified Bottom (2.5P) Chamfer H2 3 Flute Steam Oxide Coated VC-10 315 Spiral Flute STI Tap

SKU: 18002447 Weight: 0.05 LBS Minimum Purchase: 1 unit
UPC:
$59.90 $55.70
(You save $4.20)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 is the premium solution for tapping helicoil (STI) threads in difficult to machine materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number1716501
Chamfer Length (Decimal Inch)0.089"
Major Diameter (Decimal Inch)0.250"
Neck Length (Decimal Inch)1.125"
Number of Flutes3
Overall Length (Decimal Inch)2.720"
Shank Diameter (Decimal Inch)0.318"
Square Length (Decimal Inch)0.375"
Square Width (Decimal Inch)0.238"
Maximum Tap Drill Size (Decimal Inch)0.265"
Minimum Tap Drill Size (Decimal Inch)0.258"
Thread Length (Decimal Inch)0.500"
Thread Size (Inch)1/4"
CoatingSteam Oxide
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)15 Degree
Series315 Series
Product TypeSpiral Flute STI Tap
