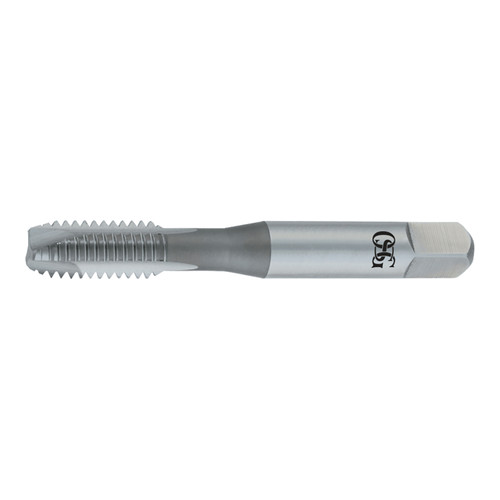

OSG 1721805 | #10- 32 Thread Size x 0.194" Shank x 0.504" Thread Length x 2.375" OAL UNF H7 Plug (4P) Chamfer Type 2 Flute Right Hand TiN Coated HSS 105Plus Spiral Point Tap

$22.86 $10.29
(You save $12.57)
Brand:
OSG
Material:
HSS
Finish/Coating:
TiN
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
18002478
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1721805 | #10- 32 Thread Size x 0.194" Shank x 0.504" Thread Length x 2.375" OAL UNF H7 Plug (4P) Chamfer Type 2 Flute Right Hand TiN Coated HSS 105Plus Spiral Point Tap

General Purpose oversized spiral point tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1721805
Chamfer Length (Decimal Inch)0.125"
Major Diameter (Decimal Inch)0.190"
Neck Length (Decimal Inch)0.874"
Number of Flutes2
Overall Length (Decimal Inch)2.375"
Shank Diameter (Decimal Inch)0.194"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.152"
Maximum Tap Drill Size (Decimal Inch)0.164"
Minimum Tap Drill Size (Decimal Inch)0.156"
Thread Length (Decimal Inch)0.504"
Thread Size NumberNo. 10
CoatingTiN
MaterialHSS
Series105+ Series
Product TypeSpiral Point Tap
