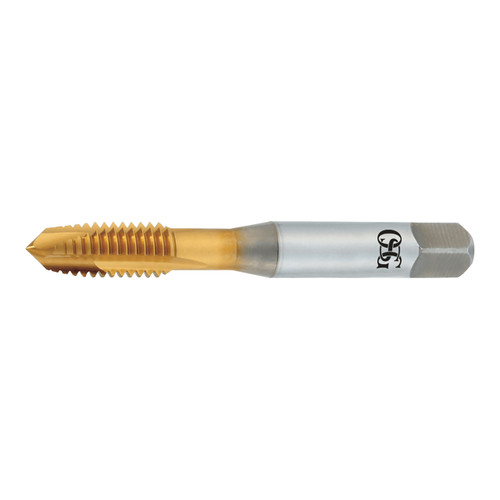

OSG 1731805 | EXO 3/4" - 10 Thread Size x 0.590" Shank x 1.251" Thread Length x 4.252" OAL UNC H3 Plug (4P) Chamfer Type 3 Flute Right Hand TiN Coated HSSE 300 Spiral Point Tap

$139.36 $129.60
(You save $9.76)
Brand:
OSG
Material:
HSSE
Finish/Coating:
TiN
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
18002581
UPC:
Weight:
0.32 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1731805 | EXO 3/4" - 10 Thread Size x 0.590" Shank x 1.251" Thread Length x 4.252" OAL UNC H3 Plug (4P) Chamfer Type 3 Flute Right Hand TiN Coated HSSE 300 Spiral Point Tap

EXOTAP VA-3 is the premium solution for tapping performance in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number1731805
Chamfer Length (Decimal Inch)0.400"
Major Diameter (Decimal Inch)0.750"
Neck Length (Decimal Inch)1.712"
Number of Flutes3
Overall Length (Decimal Inch)4.252"
Shank Diameter (Decimal Inch)0.590"
Square Length (Decimal Inch)0.688"
Square Width (Decimal Inch)0.442"
Maximum Tap Drill Size (Decimal Inch)0.663"
Minimum Tap Drill Size (Decimal Inch)0.642"
Thread Length (Decimal Inch)1.251"
Thread Size (Inch)3/4"
CoatingTiN
MaterialHSSE
Series300 Series
Product TypeSpiral Point Tap
