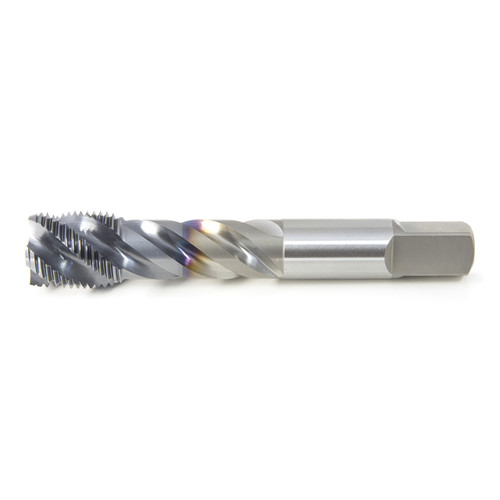

OSG 1733005 | EXOTAP UNC 3/8" - 16 Thread Size x 0.381" Shank x 0.500" Length x 2.938" OAL Modified Bottom (2.5P) Chamfer H3 3 Flute TiN Coated HSSE 303 Spiral Flute Tap

OSG 1733005 | EXOTAP UNC 3/8" - 16 Thread Size x 0.381" Shank x 0.500" Length x 2.938" OAL Modified Bottom (2.5P) Chamfer H3 3 Flute TiN Coated HSSE 303 Spiral Flute Tap

SKU: 18002598 Weight: 0.08 LBS Minimum Purchase: 1 unit
UPC:
$50.67 $47.12
(You save $3.55)
Shipping: Calculated at Checkout

About This Item

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number1733005
Chamfer Length (Decimal Inch)0.156"
Major Diameter (Decimal Inch)0.375"
Neck Length (Decimal Inch)1.252"
Number of Flutes3
Overall Length (Decimal Inch)2.938"
Shank Diameter (Decimal Inch)0.381"
Square Length (Decimal Inch)0.438"
Square Width (Decimal Inch)0.286"
Maximum Tap Drill Size (Decimal Inch)0.321"
Minimum Tap Drill Size (Decimal Inch)0.307"
Thread Length (Decimal Inch)0.500"
Thread Size (Inch)3/8"
CoatingTiN
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series303 Series
Product TypeSpiral Flute Tap
