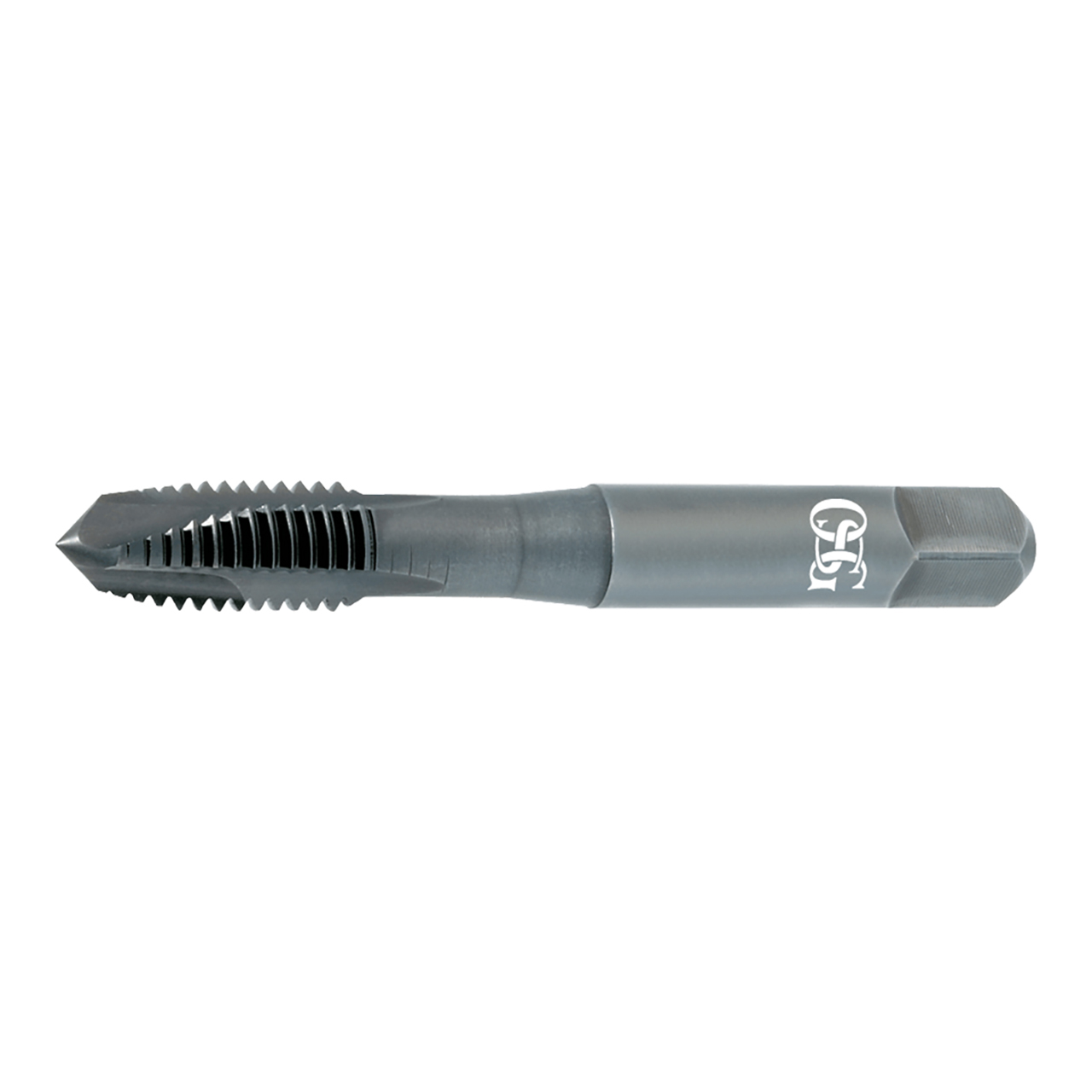

OSG 1750108 | EXOTAP M M3.00x0.50mm Thread Size x 3.58mm Shank x 6.00mm Length x 49.20mm OAL Plug (4P) Chamfer D3 3 Flute V Coated HSSE 342 Spiral Point Tap

OSG 1750108 | EXOTAP M M3.00x0.50mm Thread Size x 3.58mm Shank x 6.00mm Length x 49.20mm OAL Plug (4P) Chamfer D3 3 Flute V Coated HSSE 342 Spiral Point Tap

SKU: 18002747 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$36.98 $34.39
(You save $2.59)
Shipping: Calculated at Checkout

About This Item

EXOTAP VA-3 is the premium solution for tapping performance in stainless steels.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number1750108
Chamfer Length (Decimal Inch)0.079"
Chamfer TypePlug (4P)
Cutting DirectionRight Hand
List NameVA-3 POT
Major Diameter (mm)3.00mm
Neck Length (mm)16.00mm
Number of Flutes3
Overall Length (mm)49.20mm
Pitch (mm)0.50mm
Shank Diameter (mm)3.58mm
Square Length (mm)4.76mm
Square Width (mm)2.79mm
MaterialHSSE
CoatingV
Tap Drill Size Maximum (mm)2.60mm
Tap Drill Size Minimum (mm)2.46mm
Thread Length (mm)6.00mm
Thread LimitD3
Thread SizeM3
Thread TypeM
Series342
Product TypeSpiral Point Tap
