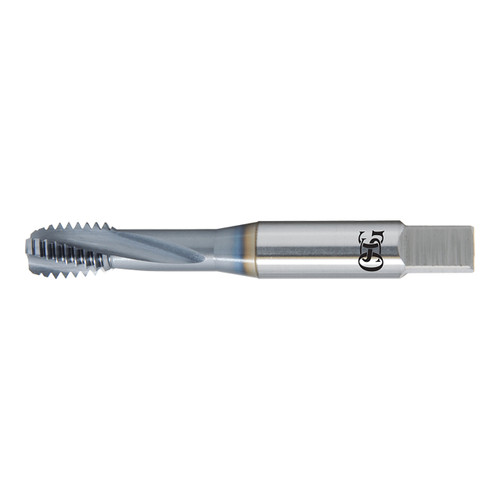

OSG 1754601 | EXOTAP UNC #8 - 32 Thread Size x 0.168" Shank x 0.252" Length x 2.125" OAL Modified Bottom (2.5P) Chamfer H2 2 Flute Steam Oxide Coated VC-10 313 Spiral Flute Tap

OSG 1754601 | EXOTAP UNC #8 - 32 Thread Size x 0.168" Shank x 0.252" Length x 2.125" OAL Modified Bottom (2.5P) Chamfer H2 2 Flute Steam Oxide Coated VC-10 313 Spiral Flute Tap

SKU: 18002781 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$39.53 $36.77
(You save $2.76)
Shipping: Calculated at Checkout

About This Item

EXOTAP VC-10 is the premium solution for tapping in difficult to machine materials.

Features & Benefits:

  • Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number1754601
Chamfer Length (Decimal Inch)0.078"
Major Diameter (Decimal Inch)0.164"
Neck Length (Decimal Inch)0.752"
Number of Flutes2
Overall Length (Decimal Inch)2.125"
Shank Diameter (Decimal Inch)0.168"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.131"
Maximum Tap Drill Size (Decimal Inch)0.139"
Minimum Tap Drill Size (Decimal Inch)0.130"
Thread Length (Decimal Inch)0.252"
Thread Size NumberNo. 8
CoatingSteam Oxide
MaterialVC-10
Helix DirectionRight Hand
Helix Angle (Degree)15 Degree
Series313 Series
Product TypeSpiral Flute Tap
