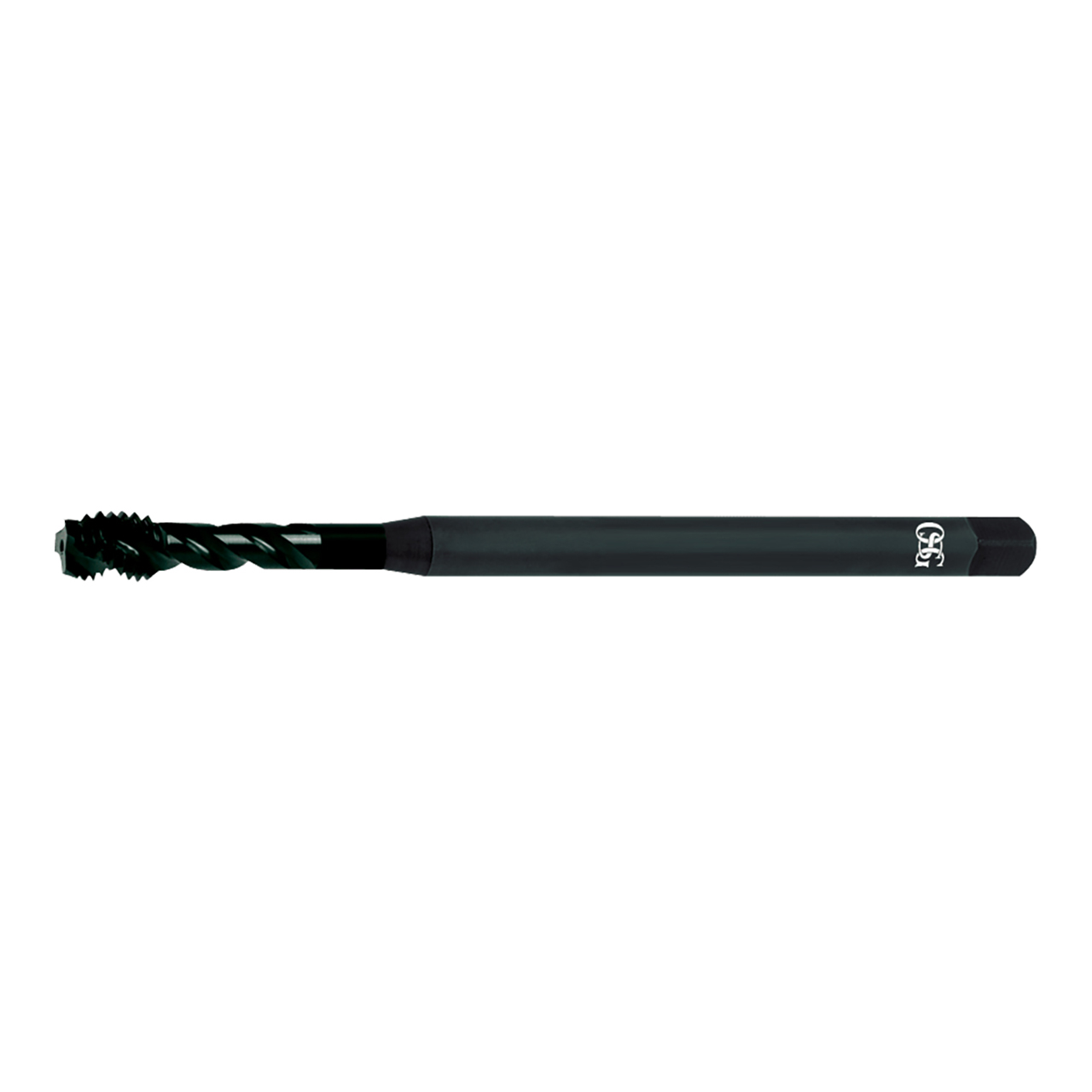

OSG 1768801 | EXOTAP UNF 3/8" - 24 Thread Size x 0.381" Shank x 0.500" Length x 6.000" OAL Modified Bottom (2.5P) Chamfer H3 3 Flute Steam Oxide Coated HSSE 398 Spiral Flute Tap

OSG 1768801 | EXOTAP UNF 3/8" - 24 Thread Size x 0.381" Shank x 0.500" Length x 6.000" OAL Modified Bottom (2.5P) Chamfer H3 3 Flute Steam Oxide Coated HSSE 398 Spiral Flute Tap

SKU: 15030040 Weight: 0.17 LBS Minimum Purchase: 1 unit
UPC:
$94.19 $87.60
(You save $6.59)
Shipping: Calculated at Checkout

About This Item

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • Long Shank: Capable of reaching 50% deeper holes than ANSI standard taps.

Product Specifications
Manufacturer Part Number1768801
Chamfer Length (Decimal Inch)0.104"
Major Diameter (Decimal Inch)0.375"
Neck Length (Decimal Inch)1.874"
Number of Flutes3
Overall Length (Decimal Inch)6.000"
Shank Diameter (Decimal Inch)0.381"
Square Length (Decimal Inch)0.438"
Square Width (Decimal Inch)0.286"
Maximum Tap Drill Size (Decimal Inch)0.340"
Minimum Tap Drill Size (Decimal Inch)0.330"
Thread Length (Decimal Inch)0.500"
Thread Size (Inch)3/8"
CoatingSteam Oxide
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)30 Degree
Series398 Series
Product TypeSpiral Flute Tap
