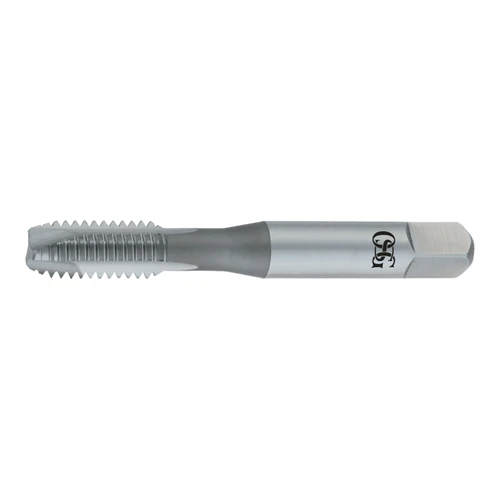

EXOTAP VA-3 is the premium solution for tapping performance in stainless steels.
Features & Benefits:
| Manufacturer Part Number | 1772901 |
| Chamfer Length (Decimal Inch) | 0.094" |
| Chamfer Type | Plug (4P) |
| Cutting Direction | Right Hand |
| List Name | VA-3 POT |
| Major Diameter (mm) | 3.50mm |
| Neck Length (mm) | 17.50mm |
| Number of Flutes | 3 |
| Overall Length (mm) | 50.80mm |
| Pitch (mm) | 0.60mm |
| Shank Diameter (mm) | 3.58mm |
| Square Length (mm) | 4.76mm |
| Square Width (mm) | 2.79mm |
| Material | HSSE |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (mm) | 3.01mm |
| Tap Drill Size Minimum (mm) | 2.85mm |
| Thread Length (mm) | 7.00mm |
| Thread Limit | D4 |
| Thread Size | M3.5 |
| Thread Type | M |
| Series | 342 |
| Product Type | Spiral Point Tap |
