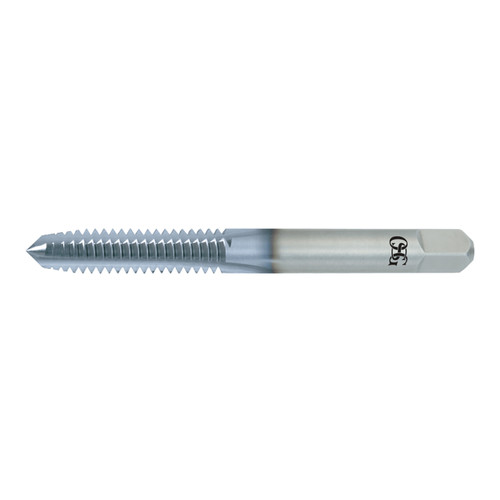

OSG 1971200 | M M8.00x1.25mm Thread Size x 8.08mm Shank x 18.80mm Length x 69.10mm OAL Taper (9P) Chamfer D5 4 Flute BRIGHT Coated HSS 141 Straight Flute Tap

OSG 1971200 | M M8.00x1.25mm Thread Size x 8.08mm Shank x 18.80mm Length x 69.10mm OAL Taper (9P) Chamfer D5 4 Flute BRIGHT Coated HSS 141 Straight Flute Tap

SKU: 18002982 Weight: 0.05 LBS Minimum Purchase: 1 unit
UPC:
$21.86 $9.84
(You save $12.02)
Shipping: Calculated at Checkout

About This Item

General Purpose straight flute tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Straight Flute: For blind and through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiN, TiCN surface treatments: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1971200
Chamfer Length (Decimal Inch)0.443"
Chamfer TypeTaper (9P)
Cutting DirectionRight Hand
List NameGENERAL PURPOSE-HT
Major Diameter (mm)8.00mm
Neck Length (mm)33.60mm
Number of Flutes4
Overall Length (mm)69.10mm
Pitch (mm)1.25mm
Shank Diameter (mm)8.08mm
Square Length (mm)9.53mm
Square Width (mm)6.05mm
MaterialHSS
CoatingBright
Tap Drill Size Maximum (mm)6.91mm
Tap Drill Size Minimum (mm)6.65mm
Thread Length (mm)18.80mm
Thread LimitD5
Thread SizeM8
Thread TypeM
Series141
Product TypeStraight Flute Tap
