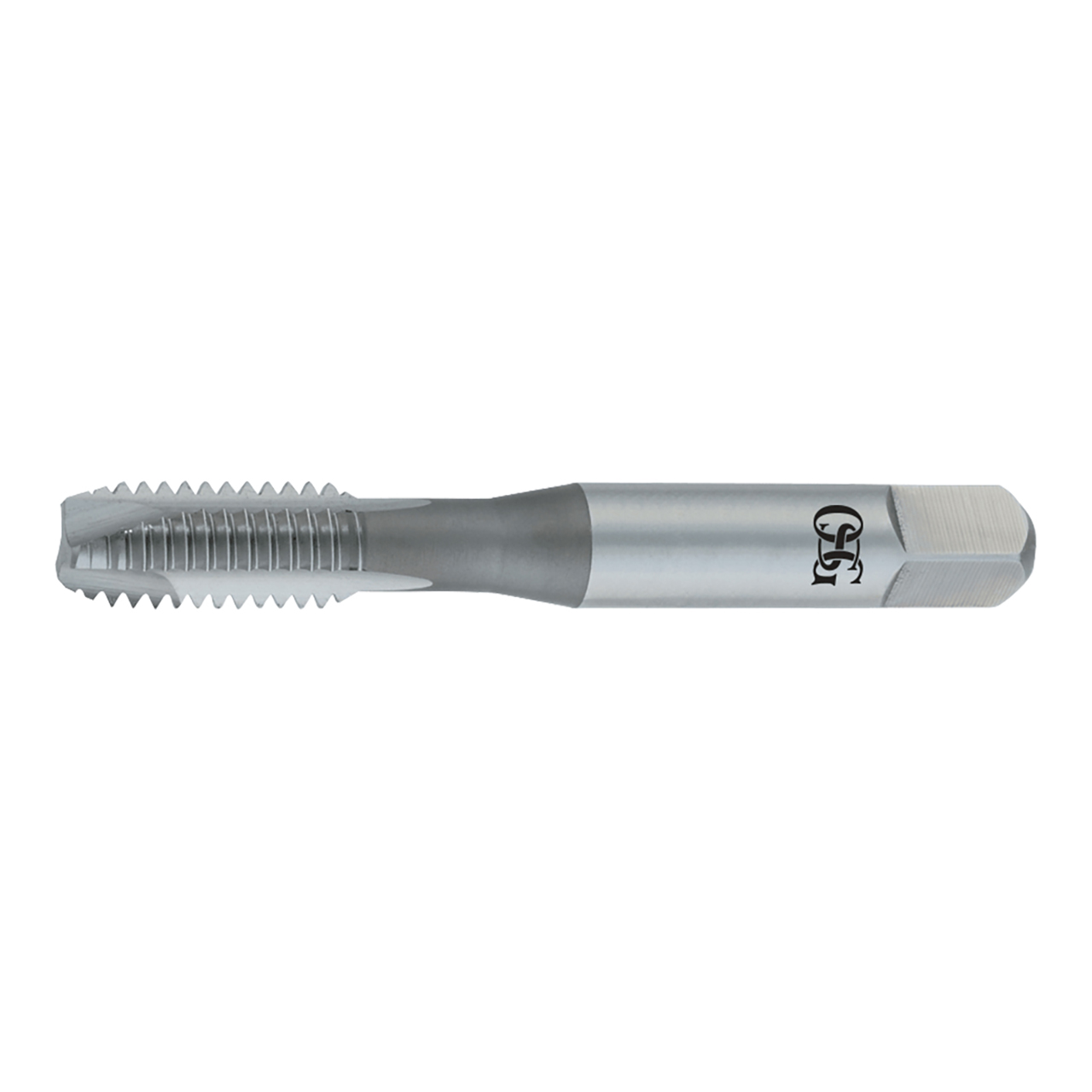

OSG 1981301 | M M8.00x1.25mm Thread Size x 8.08mm Shank x 18.00mm Length x 69.10mm OAL Plug (4P) Chamfer D5 2 Flute Steam Oxide Coated HSS 142 Spiral Point Tap

$24.20 $10.89
(You save $13.31)
Brand:
OSG
Thread Size (mm):
8.00mm
Class of Fit:
4H, 6H
Thread Limit:
D5
Number of Flutes:
2
Chamfer:
Plug (4P)
Finish/Coating:
Steam Oxide
Material:
HSS
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
15029117
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1981301 | M M8.00x1.25mm Thread Size x 8.08mm Shank x 18.00mm Length x 69.10mm OAL Plug (4P) Chamfer D5 2 Flute Steam Oxide Coated HSS 142 Spiral Point Tap

General Purpose spiral point tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1981301
Chamfer Length (Decimal Inch)0.197"
Major Diameter (mm)8.00mm
Neck Length (mm)28.80mm
Number of Flutes2
Overall Length (mm)69.10mm
Pitch (mm)1.25mm
Shank Diameter (mm)8.08mm
Square Length (mm)9.53mm
Square Width (mm)6.05mm
Maximum Tap Drill Size (mm)6.91mm
Minimum Tap Drill Size (mm)6.65mm
Thread Length (mm)18.00mm
Thread SizeM8
CoatingSteam Oxide
MaterialHSS
Series142 Series
Product TypeSpiral Point Tap
