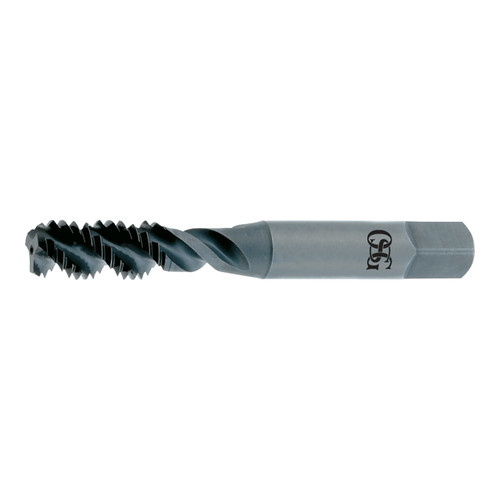

OSG 1985201 | M M3.00x0.50mm Thread Size x 3.58mm Shank x 8.30mm Length x 49.20mm OAL Bottom (1.5P) Chamfer D3 2 Flute Steam Oxide Coated HSS 143 Spiral Flute Tap

$35.63 $16.03
(You save $19.60)
Brand:
OSG
Overall Length (mm):
49.20mm
Number of Flutes:
2
Material:
HSS
Finish/Coating:
Steam Oxide
Flute Direction:
Right Hand
interval quantity:
1
SKU:
15029332
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1985201 | M M3.00x0.50mm Thread Size x 3.58mm Shank x 8.30mm Length x 49.20mm OAL Bottom (1.5P) Chamfer D3 2 Flute Steam Oxide Coated HSS 143 Spiral Flute Tap

General purpose premium spiral flute taps for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1985201
Chamfer Length (Decimal Inch)0.030"
Major Diameter (mm)3.00mm
Neck Length (mm)15.79mm
Number of Flutes2
Overall Length (mm)49.20mm
Pitch (mm)0.50mm
Shank Diameter (mm)3.58mm
Square Length (mm)4.76mm
Square Width (mm)2.79mm
Maximum Tap Drill Size (mm)2.60mm
Minimum Tap Drill Size (mm)2.46mm
Thread Length (mm)8.30mm
Thread SizeM3
CoatingSteam Oxide
MaterialHSS
Helix DirectionRight Hand
Helix Angle (Degree)50 Degree
Series143 Series
Product TypeSpiral Flute Tap
