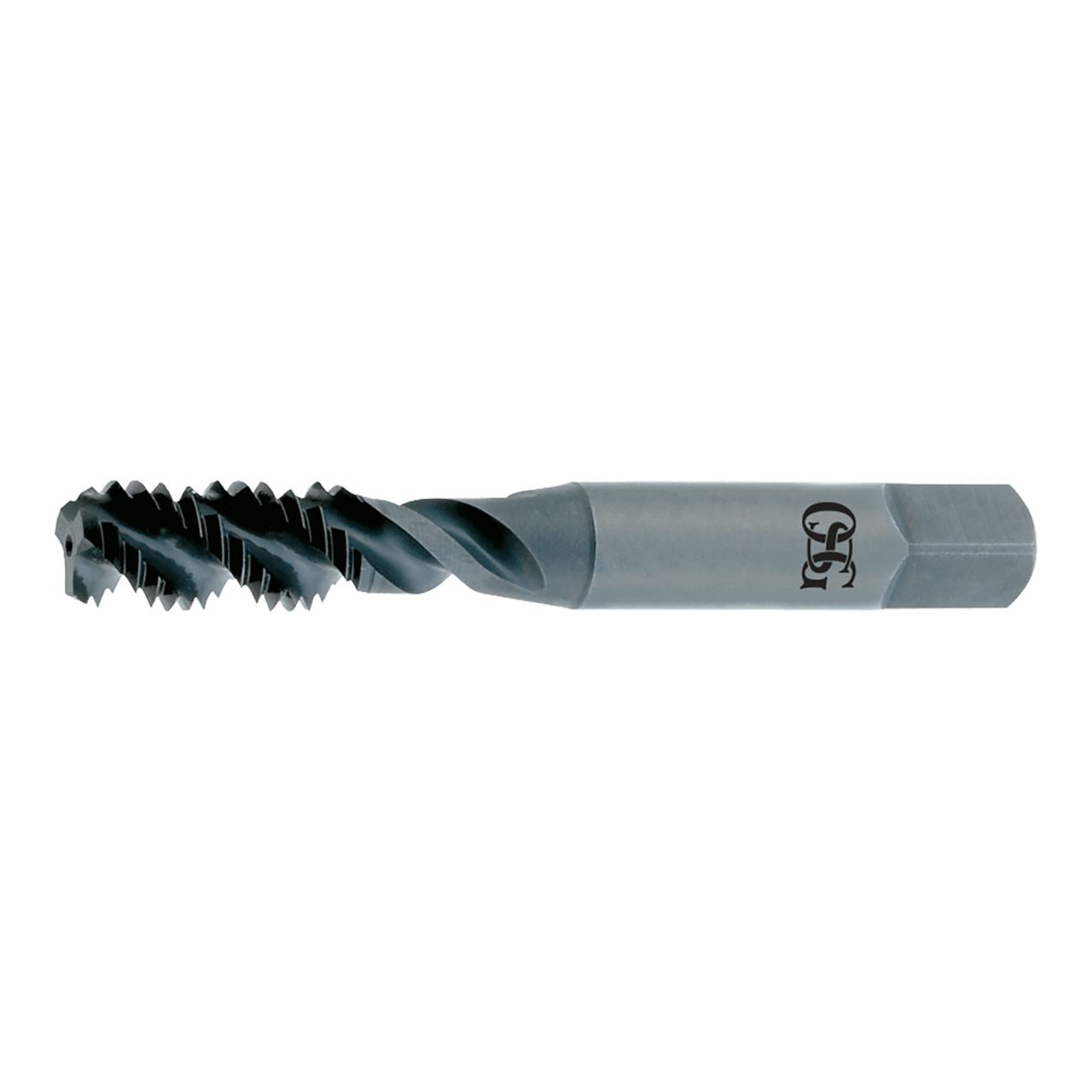

OSG 1985801 | M M5.00x0.80mm Thread Size x 4.93mm Shank x 13.00mm Length x 60.30mm OAL Bottom (1.5P) Chamfer D4 3 Flute Steam Oxide Coated HSS 143 Spiral Flute Tap

OSG 1985801 | M M5.00x0.80mm Thread Size x 4.93mm Shank x 13.00mm Length x 60.30mm OAL Bottom (1.5P) Chamfer D4 3 Flute Steam Oxide Coated HSS 143 Spiral Flute Tap

SKU: 15029338 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$31.42 $14.14
(You save $17.28)
Shipping: Calculated at Checkout

About This Item

General purpose premium spiral flute taps for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1985801
Chamfer Length (Decimal Inch)0.047"
Major Diameter (mm)5.00mm
Neck Length (mm)22.40mm
Number of Flutes3
Overall Length (mm)60.30mm
Pitch (mm)0.80mm
Shank Diameter (mm)4.93mm
Square Length (mm)6.35mm
Square Width (mm)3.86mm
Maximum Tap Drill Size (mm)4.33mm
Minimum Tap Drill Size (mm)4.13mm
Thread Length (mm)13.00mm
Thread SizeM5
CoatingSteam Oxide
MaterialHSS
Helix DirectionRight Hand
Helix Angle (Degree)50 Degree
Series143 Series
Product TypeSpiral Flute Tap
