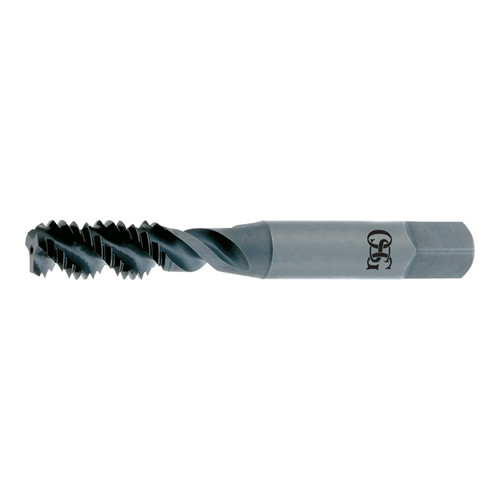

OSG 1986108 | M M6.00x1.00mm Thread Size x 6.48mm Shank x 16.30mm Length x 63.50mm OAL Bottom (1.5P) Chamfer D5 3 Flute TiCN Coated HSS 143 Spiral Flute Tap

$40.38 $18.17
(You save $22.21)
Brand:
OSG
Overall Length (mm):
63.50mm
Number of Flutes:
3
Material:
HSS
Finish/Coating:
TiCN
Flute Direction:
Right Hand
interval quantity:
1
SKU:
18003058
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1986108 | M M6.00x1.00mm Thread Size x 6.48mm Shank x 16.30mm Length x 63.50mm OAL Bottom (1.5P) Chamfer D5 3 Flute TiCN Coated HSS 143 Spiral Flute Tap

General purpose premium spiral flute taps for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1986108
Chamfer Length (Decimal Inch)0.059"
Major Diameter (mm)6.00mm
Neck Length (mm)25.70mm
Number of Flutes3
Overall Length (mm)63.50mm
Pitch (mm)1.00mm
Shank Diameter (mm)6.48mm
Square Length (mm)7.94mm
Square Width (mm)4.85mm
Maximum Tap Drill Size (mm)5.15mm
Minimum Tap Drill Size (mm)4.92mm
Thread Length (mm)16.30mm
Thread SizeM6
CoatingTiCN
MaterialHSS
Helix DirectionRight Hand
Helix Angle (Degree)50 Degree
Series143 Series
Product TypeSpiral Flute Tap
