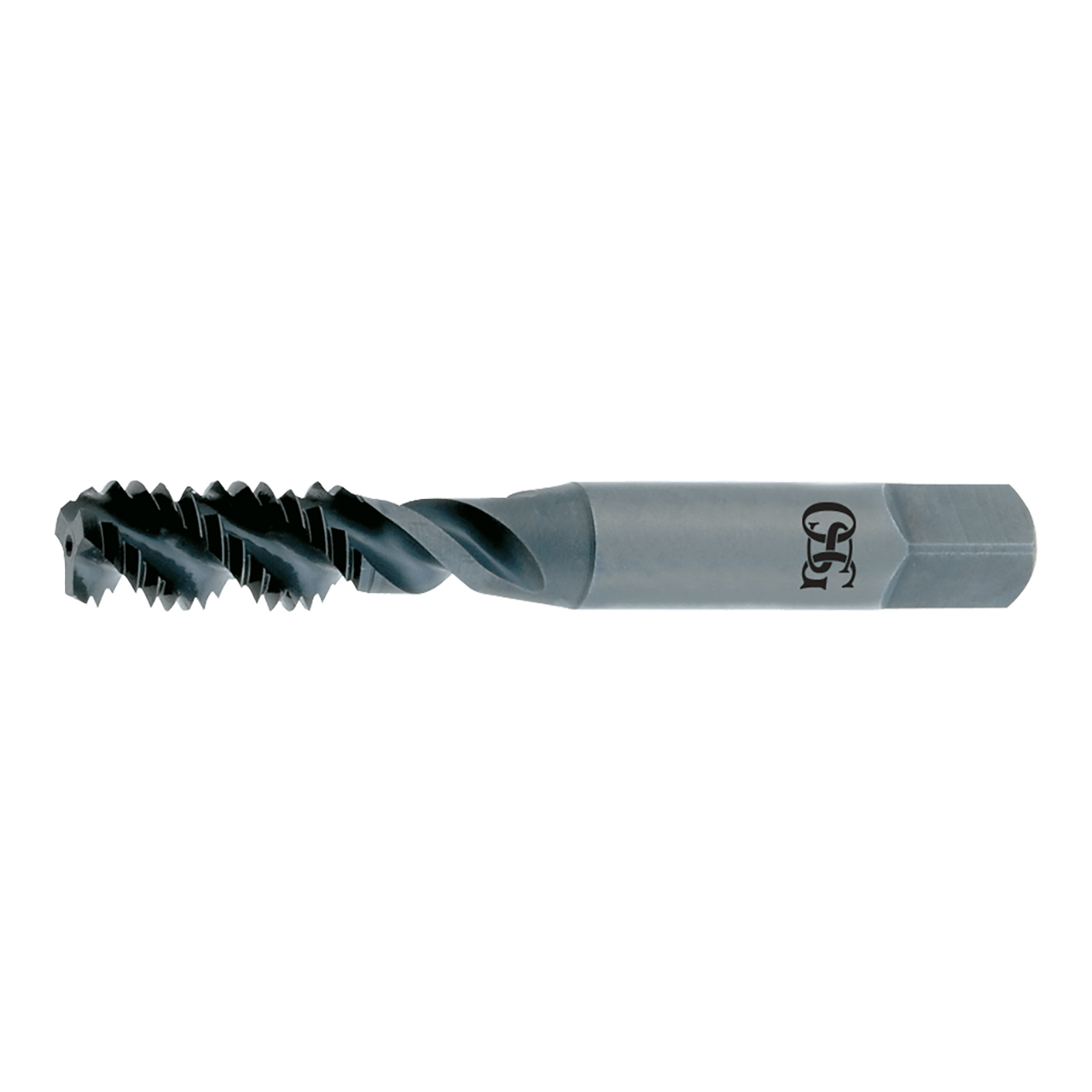

OSG 1986408 | M8 x 1.25mm Thread Size x 18.00mm Thread Length M D5 Bottom (1.5P) Chamfer Type 3 Flute Right Hand TiCN Coated HSS 143 Spiral Flute Tap

$49.60 $22.32
(You save $27.28)
Brand:
OSG
Overall Length (mm):
69.10mm
Number of Flutes:
3
Material:
HSS
Finish/Coating:
TiCN
Flute Direction:
Right Hand
interval quantity:
1
SKU:
18003061
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1986408 | M8 x 1.25mm Thread Size x 18.00mm Thread Length M D5 Bottom (1.5P) Chamfer Type 3 Flute Right Hand TiCN Coated HSS 143 Spiral Flute Tap

General purpose premium spiral flute taps for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1986408
Chamfer Length (Decimal Inch)0.074"
Major Diameter (mm)8.00mm
Neck Length (mm)28.70mm
Number of Flutes3
Overall Length (mm)69.10mm
Pitch (mm)1.25mm
Shank Diameter (mm)8.08mm
Square Length (mm)9.53mm
Square Width (mm)6.05mm
Maximum Tap Drill Size (mm)6.91mm
Minimum Tap Drill Size (mm)6.65mm
Thread Length (mm)18.00mm
Thread SizeM8
CoatingTiCN
MaterialHSS
Helix DirectionRight Hand
Helix Angle (Degree)50 Degree
Series143 Series
Product TypeSpiral Flute Tap
