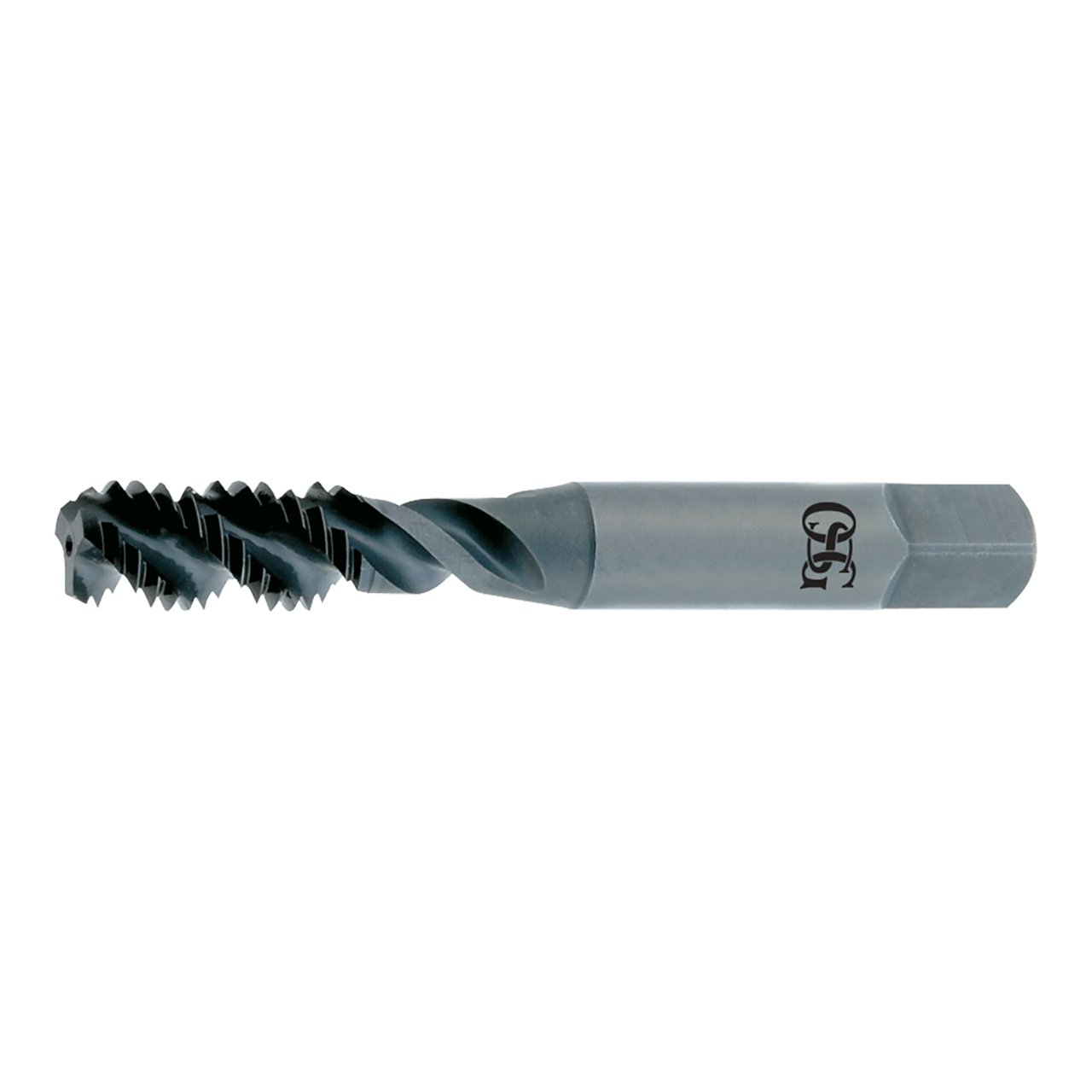

OSG 1986608 | M M10.00x1.50mm Thread Size x 9.68mm Shank x 19.50mm Length x 74.60mm OAL Plug (4.5P) Chamfer D6 3 Flute TiCN Coated HSS 143 Spiral Flute Tap

$79.18 $35.63
(You save $43.55)
Brand:
OSG
Overall Length (mm):
74.60mm
Number of Flutes:
3
Material:
HSS
Finish/Coating:
TiCN
Flute Direction:
Right Hand
interval quantity:
1
SKU:
18003063
UPC:
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1986608 | M M10.00x1.50mm Thread Size x 9.68mm Shank x 19.50mm Length x 74.60mm OAL Plug (4.5P) Chamfer D6 3 Flute TiCN Coated HSS 143 Spiral Flute Tap

General purpose premium spiral flute taps for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1986608
Chamfer Length (Decimal Inch)0.266"
Major Diameter (mm)10.00mm
Neck Length (mm)31.69mm
Number of Flutes3
Overall Length (mm)74.60mm
Pitch (mm)1.50mm
Shank Diameter (mm)9.68mm
Square Length (mm)11.11mm
Square Width (mm)7.26mm
Maximum Tap Drill Size (mm)8.68mm
Minimum Tap Drill Size (mm)8.38mm
Thread Length (mm)19.50mm
Thread SizeM10
CoatingTiCN
MaterialHSS
Helix DirectionRight Hand
Helix Angle (Degree)50 Degree
Series143 Series
Product TypeSpiral Flute Tap
