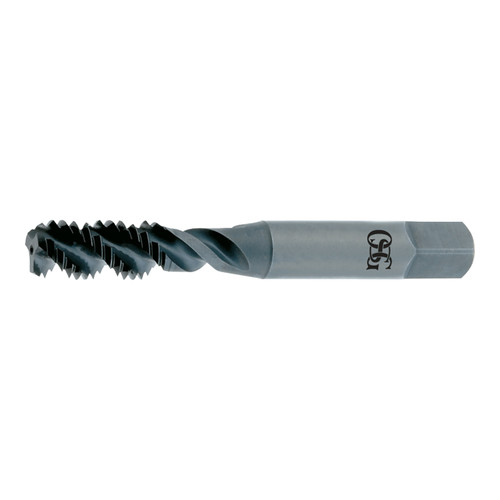

OSG 1987001 | M M12.00x1.75mm Thread Size x 9.32mm Shank x 24.40mm Length x 85.70mm OAL Bottom (1.5P) Chamfer D6 3 Flute Steam Oxide Coated HSS 143 Spiral Flute Tap

$80.57 $36.26
(You save $44.31)
Brand:
OSG
Overall Length (mm):
85.70mm
Number of Flutes:
3
Material:
HSS
Finish/Coating:
Steam Oxide
Flute Direction:
Right Hand
interval quantity:
1
SKU:
18003067
UPC:
Weight:
0.10 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1987001 | M M12.00x1.75mm Thread Size x 9.32mm Shank x 24.40mm Length x 85.70mm OAL Bottom (1.5P) Chamfer D6 3 Flute Steam Oxide Coated HSS 143 Spiral Flute Tap

General purpose premium spiral flute taps for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1987001
Chamfer Length (Decimal Inch)0.103"
Major Diameter (mm)12.00mm
Neck Length (mm)48.99mm
Number of Flutes3
Overall Length (mm)85.70mm
Pitch (mm)1.75mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
Maximum Tap Drill Size (mm)10.44mm
Minimum Tap Drill Size (mm)10.11mm
Thread Length (mm)24.40mm
Thread SizeM12
CoatingSteam Oxide
MaterialHSS
Helix DirectionRight Hand
Helix Angle (Degree)50 Degree
Series143 Series
Product TypeSpiral Flute Tap
