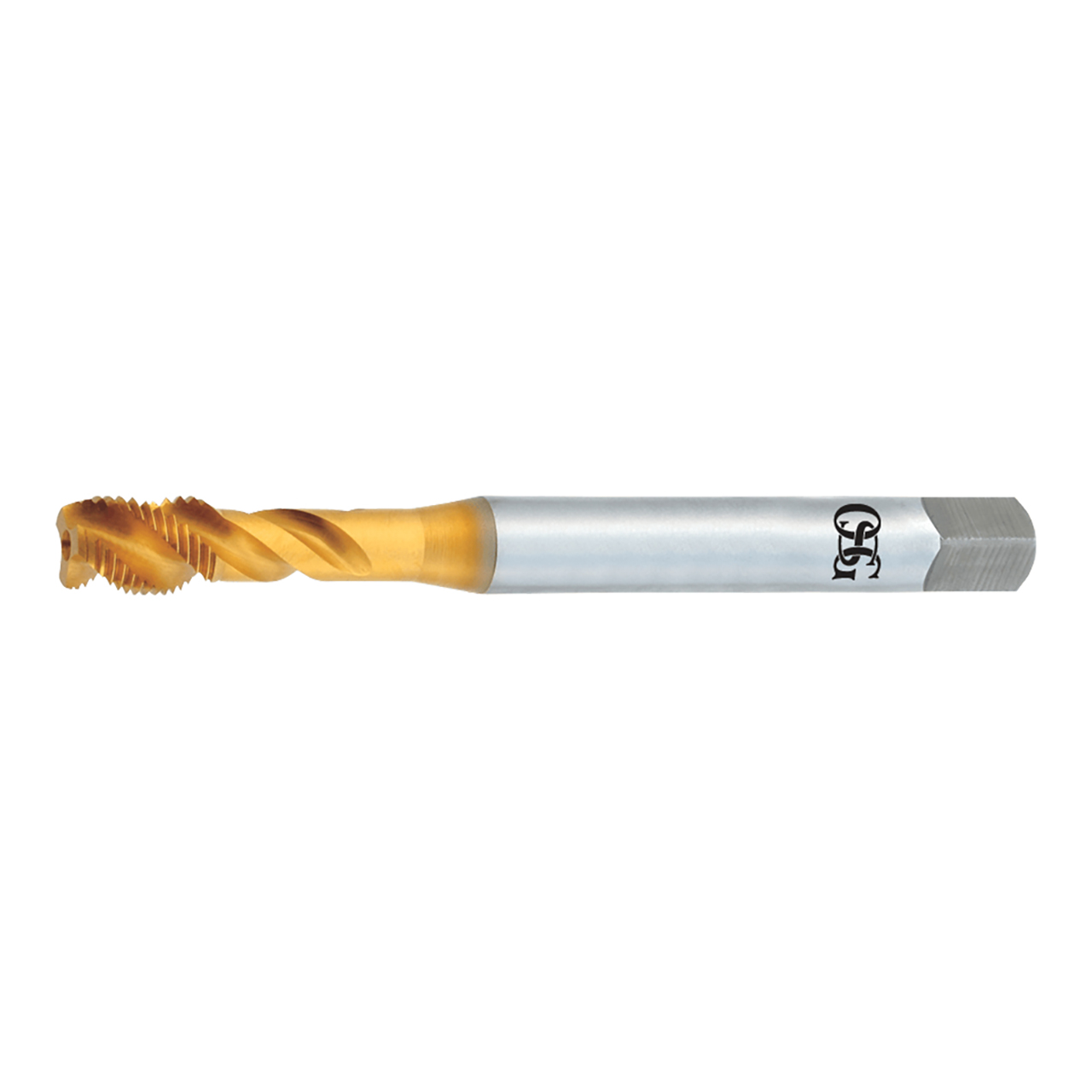

HY-PRO DIN is the original "Do it All" premium spiral flute tap for a wide range of materials.
Features & Benefits:
| Manufacturer Part Number | 2332405 |
| Chamfer Length (Decimal Inch) | 0.192" |
| Chamfer Type | Modified Bottom (2.5P) |
| Class of Fit | 2B |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Helix Angle (Degree) | 45 Degree |
| Helix Direction | Right Hand |
| List Name | DIN OIL-TIN-SFT |
| Major Diameter (Decimal Inch) | 0.500" |
| Neck Length (Decimal Inch) | 1.934" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 4.331" |
| Shank Diameter (Decimal Inch) | 0.367" |
| Square Length (Decimal Inch) | 0.438" |
| Square Width (Decimal Inch) | 0.275" |
| Material | HSSE |
| Coating | TiN |
| Tap Drill Size Maximum (Decimal Inch) | 0.434" |
| Tap Drill Size Minimum (Decimal Inch) | 0.417" |
| Thread Length (Decimal Inch) | 0.614" |
| Thread Size (Inch) | 1/2" |
| Thread Type | UNC |
| Thread Per Inch (TPI) | 13 TPI |
| Series | 230 |
| Product Type | Spiral Flute Tap |
