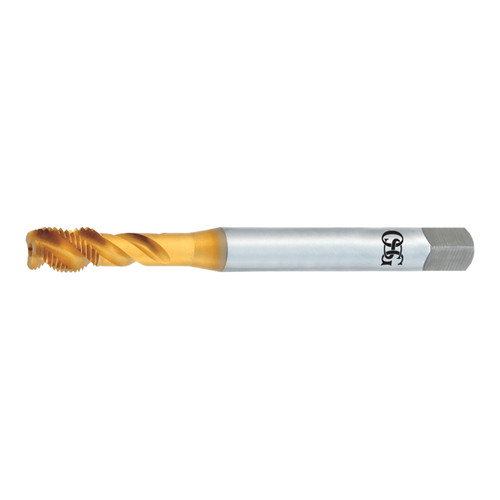

OSG 2392305 | HY-PRO TAP M M12.00x1.75mm Thread Size x 9.32mm Shank x 14.00mm Length x 11.00mm OAL Modified Bottom (2.5P) Chamfer 3 Flute TiN Coated HSSE 239 Spiral Flute Tap

OSG 2392305 | HY-PRO TAP M M12.00x1.75mm Thread Size x 9.32mm Shank x 14.00mm Length x 11.00mm OAL Modified Bottom (2.5P) Chamfer 3 Flute TiN Coated HSSE 239 Spiral Flute Tap

SKU: 15030393 Weight: 0.12 LBS Minimum Purchase: 1 unit
UPC:
$144.96 $88.42
(You save $56.54)
Shipping: Calculated at Checkout

About This Item

HY-PRO DIN is the original "Do it All" premium spiral flute tap for a wide range of materials.

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • TiN Coating: Improves wear resistance for extended tap life
  • DIN Overall Length: Provides greater reach capability

Product Specifications
Manufacturer Part Number2392305
Chamfer Length (Decimal Inch)0.172"
Major Diameter (mm)12.00mm
Neck Length (mm)49.10mm
Number of Flutes3
Overall Length (mm)110.00mm
Pitch (mm)1.75mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
Maximum Tap Drill Size (mm)10.44mm
Minimum Tap Drill Size (mm)10.11mm
Thread Length (mm)14.00mm
Thread SizeM12
CoatingTiN
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series239 Series
Product TypeSpiral Flute Tap
